Home > Current Transformer > Three phase CT
DASN Type Three Phase CT
DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT DASN Type Three Phase CT
  • DASN Type Three Phase CT
  • DASN Type Three Phase CT
  • DASN Type Three Phase CT
  • DASN Type Three Phase CT
  • DASN Type Three Phase CT
  • DASN Type Three Phase CT

DASN Type Three Phase CT

Item No.: DASN
DASN series three phase current transformer development of DAS series,use it in primary current 60A-1600A electric circuit ,supporting the use of plastic shell breaker.
Add to Inquiry
Description
Description
Introduce

DASN series three phase current transformer development of DAS series,use it in primary current 60A-1600A electric circuit ,supporting the use of plastic shell breaker.

Applications
Current measurement, monitoring and protection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting,air compressor, heating and ventilation system.
Air-condition equipment and Current, power and energy monitoring device.
Relay protection device.
Features
Epoxy Potting,Double-screw fastening,safe,easy to install,portable.
Wide inner window,allowing clamping of big cables or bus-bars.
Wide range of sizes to accommodate all the existing installations.
Technical Parameter



Rated Frequency 50/60Hz
Withstand voltage AC3kV(1min)
Rated thermal current 60ln
Dynamic stability current 2.5lth
Rated voltage AC0.72KV
Burden 1.2ln
Operating temperature range -10°C-50°C
Prevent combustion level V0
Accuracy limit class FS5
Secondary current 5A,1A



Specification



Type Current ratio  Burden Packing for carton Accuracy
DASN240 60/5 1.5 36 1.0
100/5 1.5 36 1.0
120/5 1.5 36 1.0
125/5 2.5 36 1.0
150/5 2.5 36 1.0
160/5 2.5 36 1.0
200/5 2.5 36 1.0



Type Current ratio  Burden Packing for carton Accuracy
DASN242 60/5 1 30 1.0
100/5 1.5 30 1.0
120/5 1.5 30 1.0
125/5 1.5 30 1.0
150/5 2.5 30 1.0
160/5 2.5 30 1.0
200/5 2.5 30 1.0
250/5 2.5 30 1.0



Type Current ratio  Burden Packing for carton Accuracy
DASN248 250/5 2.5 20 1.0
300/5 3.75 20 1.0
400/5 3.75 20 1.0
500/5 3.75 20 1.0
600/5 3.75 20 1.0
630/5 3.75 20 1.0



Type Current ratio  Burden Packing for carton Accuracy
DASN249 100/5 1.5 30 1.0
120/5 1.5 30 1.0
125/5 2.5 30 1.0
125/5 2.5 30 1.0
160/5 2.5 30 1.0
200/5 2.5 30 1.0
250/5 2.5 30 1.0



Type Current ratio  Burden Packing for carton Accuracy
DASN250  600/5 10 20 1.0
630/5 10 20 1.0
800/5 10 20 1.0
1000/5 10 20 1.0
1200/5 10 20 1.0
1600/5 10 20 1.0

Dimensions

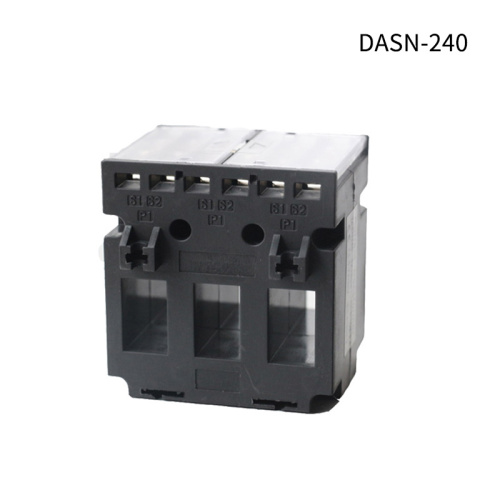

DASN-240 DASN-242

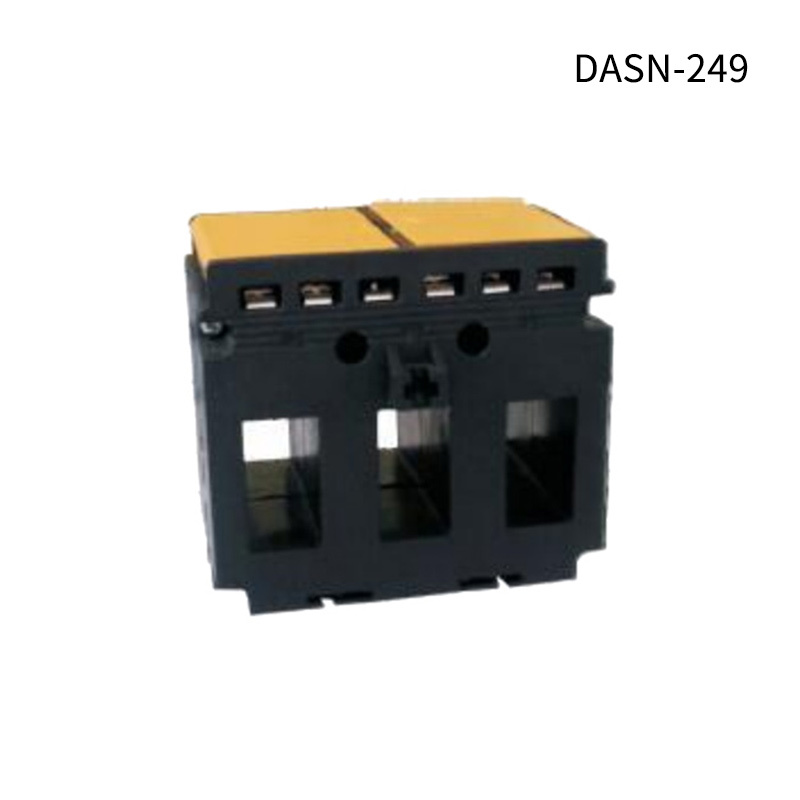

DASN-248 DASN-249
DASN-250


Accuracy test
