JDZ(J)-3，6，10Q
JDZ(J)-3，6，10Q JDZ(J)-3，6，10Q JDZ(J)-3，6，10Q JDZ(J)-3，6，10Q JDZ(J)-3，6，10Q JDZ(J)-3，6，10Q
  • JDZ(J)-3，6，10Q
  • JDZ(J)-3，6，10Q

JDZ(J)-3，6，10Q

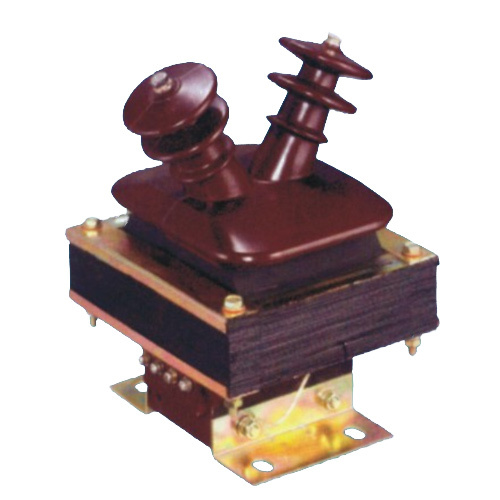

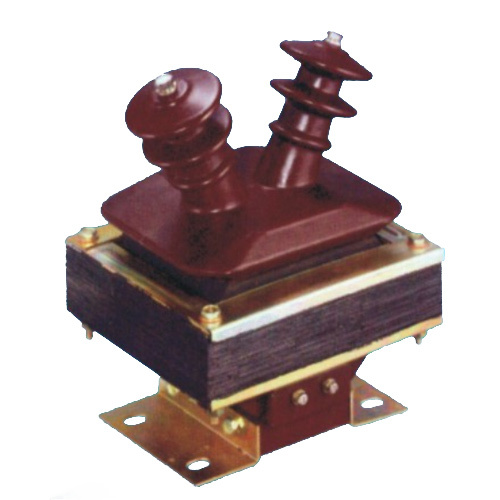

Item No.: JDZ(J)-3，6，10Q current transformer
The voltage transformer of this type epoxy resin cast of a semi-enclosed products indoors applies to the rated frequency 50Hz rated voltage 10kV and below the power system voltage,energy measurment and relay protection.
Add to Inquiry
Description
Description
Introduce

JDZ(J)-3.6 the 10Q type transformer cast in epoxy resin semi- closed the whole insulation products.The core quailty cold-rolled silicon steel sheet piled.The primary winding is a sign of lead terminals A and B ,a sign of the secondary winding lead wire terminals a,b,are a clear note on the casting body into.

JDZ(J)-3,6,10Q type voltage transformer connection symbol 1/1/1/-12=12 three single -phase voltage transformer connection groups for YO/YO/12-11(residual voltage winding open triangle)

Features
This type of tramsformers insulated by the epoxy resin composition ,small size ,light weight ,installion accounts for only a limited space .
Winding fully cast in epoxy resin has excellent insulating properties,impact resistance and mechanical stress,and can protect the winding from moisture.
Dolder on the ground sign next to the grounding bolt for grounding the lower bracket for mounting.The overall structure is compact,easy to use .
Technical Parameter



TRANSDUCER
Pollution class class II
Load power factor 0.8(lag)
Rated secondary current 5A/1A
Product standard GB1207
Safety factor
 FS<10



Specification



Type Rated voltage ratio Rated output Limit output Reted insulation level
0.2 0.5 1 3 6P
JDZ-3Q 3/0.1 15 30 50 100 / 200 3.6/25/40
JDZ-6Q 6/0.1 20 50 80 200 / 400 7.2/30/60
JDZ-10Q 10/0.1 30 80 120 300 / 500 12/42/75
JDZJ-3Q 3/√3/0.1/√3/0.1/3 15 30 50 100 50 200 3.6/25/40
JDZJ-6Q 6/√3/0.1/√3/0.1/3 20 50 50 100 50 400 7.2/30/60
JDZJ-10Q 10/√3/0.1/√3/0.1/3 20 50 80 150 100 400 12/42/75



Dimensions



JDZ-3\6Q



JDZJ-3\6Q



JDZ-10Q



JDZJ-10Q

Accuracy test

24Hs online service
365Ds NON-Stop Production 20Ys Professional Manufacturers
Professional designer and manufacturer of current transformer,
cooperated with Siemens ,schneider Fuji electrical softbank LG samdsung.
