A-C2T Current Transmitter

Item No.: A-C2T

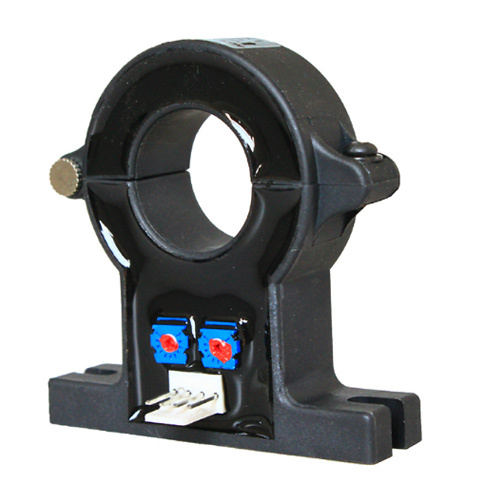

A-C2T series dismountable hall effect current Transmitter is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit.
Description
Description
Introduce

A-C2T series dismountable hall effect current Transmitter is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of AC or pulsed currents.

Applications
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
Directions for use
When the current will be measured goes through a sensor, the current will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)
Custom design in the different rated input current and the output current are available.
Technical Parameter



Type A-C2T-100A A-C2T-200A A-C2T-300A A-C2T-400A A-C2T-500A Unit
Rated current(Ipn AC) 100 200 300 400 500 A
Measure range(Ip AC) 0—200 0—400 0—600 0—800 0—1000 A
Rated output(Io DC) @Ip=±Ipn AC           4~20±1% mA
Supply voltage +24V V
Power Consumption +35+ Io mA
Zero current @Ip=0                     4±0.1 mA
Offset drift @ -40~+85℃               ≤±0.005 mA /℃
Output drift @ -40~+85℃               ≤±0.005 mA /℃
Linearity @Ip=0-±Ipn                ≤1 %FS
Response time ≤200 ms
Galvanic isolation @ 50HZ,AC,1min             2.5 KV
Bandwidth 20~20000 HZ



Dimensions



Mechanical dimension(for reference only) Effects of impulse noise

General date Value Unit
Operating temperature(TA) -40 to +85
Storage temperature(TS) -40 to +125
Mass(approx) (M) 70 g

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000

24Hs online service
365Ds NON-Stop Production 20Ys Professional Manufacturers
Professional designer and manufacturer of current transformer,
cooperated with Siemens ,schneider Fuji electrical softbank LG samdsung.
