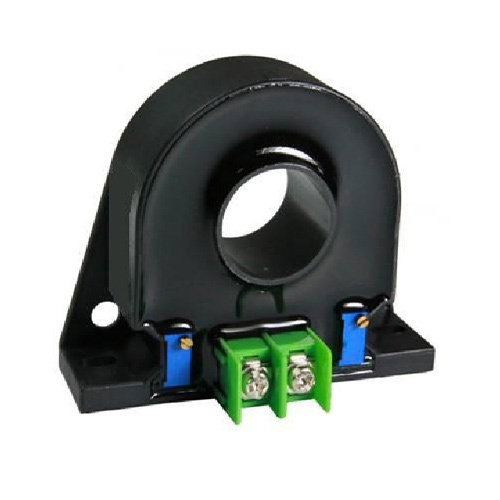

A-D6T Current Transmitter
A-D6T Current Transmitter A-D6T Current Transmitter A-D6T Current Transmitter
  • A-D6T Current Transmitter

A-D6T Current Transmitter

Item No.: A-D6T
A-D6T series hall effect current Transmitter is an Closed loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit.
Add to Inquiry
Description
Description
Introduce

A-D6T series hall effect current Transmitter is an Closed loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of AC or pulsed currents.

Applications
Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
Directions for use
When the current will be measured goes through a transmitter, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the transmitter)
Customs can adjust output amplitude of the transmitter by needs.
Custom design in the different rated input current and the output voltage are available.
Technical Parameter



Type A-D6T-100A A-D6T-200A A-D6T-300A A-D6T-400A A-D6T-500A Unit
Rated current(Ipn AC) 100 200 300 400 500 A
Measure range(Ip AC) 0—120 0—240 0—360 0—480 0—600 A
Rated output @Ip=±Ipn AC           4～20±1% mA
Supply voltage +12～+32V V
Power Consumption +35+ Io mA
Zero current @Ip=0                     4±0.1 mA
Offset drift @ -40～+85℃              ≤±0.005 mA /℃
Output drift @ -40～+85℃              ≤±0.005 mA /℃
Linearity @Ip=0-±Ipn                ≤0.5 %FS
Response time ≤300 ms
Galvanic isolation @ 50HZ,AC,1min             5 KV
Bandwidth 20～20000 HZ

Dimensions



Mechanical dimension(for reference only) Effects of impulse noise

Remarks：

1.All dimensions are in mm.

2. General tolerance ±1mm.

General date Value Unit
Operating temperature(TA) -40 to +85 ℃
Storage temperature(TS) -40 to +125 ℃
Mass(approx) (M) 300 g

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000
