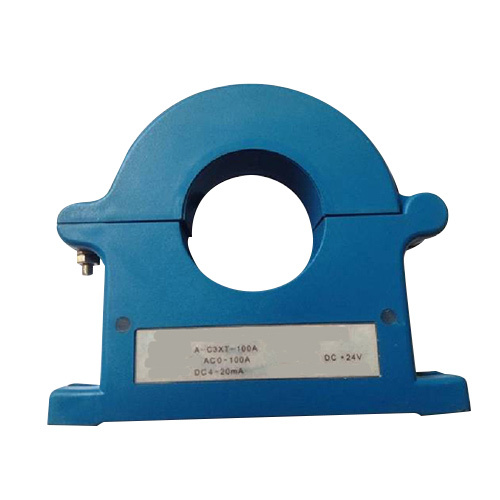

A-C3X Current Transmitter
A-C3X Current Transmitter A-C3X Current Transmitter A-C3X Current Transmitter
  • A-C3X Current Transmitter

A-C3X Current Transmitter

Item No.: AC3X
A-C3X series dismountable hall effect current Transmitter is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit.
Add to Inquiry
Description
Description
Introduce

A-C3X series dismountable hall effect current Transmitter is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit.It provides accurate electronic measurement of AC or pulsed currents.

Applications
Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
Directions for use
1. When the current will be measured goes through a transmitter, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the transmitter)
2. Customs can adjust output amplitude of the transmitter by needs.
3. Custom design in the different rated input current and the output voltage are available.
Technical Parameter



Type A-C3X-200A A-C3X-500A A-C3X-800A A-C3X-1000A A-C3X-1500A A-C3X-2000A Unit
Rated current(Ipn AC) 200 500 800 1000 1500 2000 A
Measure range(Ip AC) 0—400 0—1000 0—1600 0—2000 0—3000 0—3000 A
Rated output（Vo DC） @Ip=±Ipn AC                  5±1% V
Supply voltage ±12，±15 V
Power Consumption 25 mA
Offset voltage @Ip=0                          ±30 mV
Offset drift @ -40～+85℃                  ≤±1 mV /℃
Output drift @ -40～+85℃                  ≤±1 mA /℃
Linearity @Ip=0-±Ipn                    ≤1 %FS
Response time ≤200 ms
Galvanic isolation @ 50HZ,AC,1min                 5 KV
Bandwidth 40～20000 HZ

All dimensions are in mm.

2. General tolerance ±1mm.

3. Elucidation:  1:+15V  2: -15V  3:V0UT  4:0V

Dimensions



Mechanical dimension(for reference only) Note

General date Value Unit
Operating temperature(TA) -40 to +85 ℃
Storage temperature(TS) -40 to +125 ℃
Mass(approx) (M) 540 g

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000
