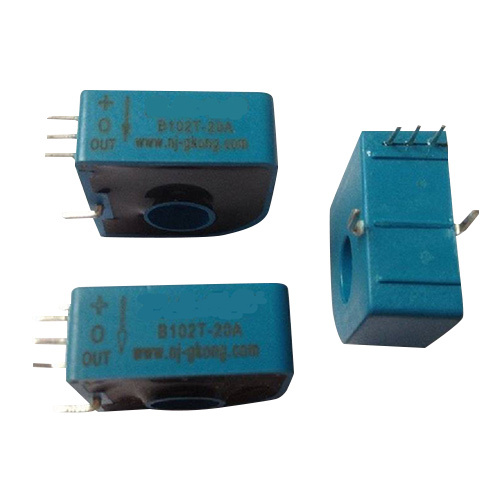

B102T Type Current Sensor

B102T Type Current Sensor

Description

Description

Introduce

B102T series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Applications

AC variable speed drives

Static converters for DC motor drives

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Switched Mode Power Supplies (SMPS)

Power supplies for welding applications

Directions for use

When the current will be measured goes through a sensor, the current will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)

Custom design in the different rated input current and the output current are available.

Technical Parameter

Type	B102T-20A	B102T-25A	Unit
Rated current（Ipn）	20	25	A
Measure range（Ip）	±20	±25	A
Turns ratio(Np/Ns)	1:1000	1:625	T
Internal resister	100±0.1%	50±0.1%	Ω
Rated output	@Ip=±Ipn ±2±0.5%		V
Supply voltage	+5V		V
Power Consumption	≤20+ IpX(Np/Ns)		mA
Zero voltage	@Ip=0 +2.5±0.5%		V
Zero voltage drift	@ -40～+85℃ ≤±0.5		mV /℃
Linearity	@Ip=0-±Ipn ≤0.1		%FS
Total precision	≤±0.7		%
di/dt accurately followed	＞50		A /μS
Response time	@100A/μ S,10%-90% ≤1		μS
Galvanic isolation	@ 50HZ,AC,1min 2.5		KV
Bandwidth	@ -1db DC～200		KHZ

Dimensions

Mechanical dimension(for reference only)

Remark

1. All dimensions are in mm.

2. General tolerance ±1mm.

3. Elucidation: 1:+5V 2:OV 3:V0UT

General date	Value	Unit
Operating temperature(TA)	-40 to +85	℃
Storage temperature(TS)	-40 to +125	℃
Mass(approx) (M)	10	g

Accuracy test

Pulse current signal response characteristic

Effects of impulse noise

( Input signal )

( Output signal )

( Output voltage )

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000
