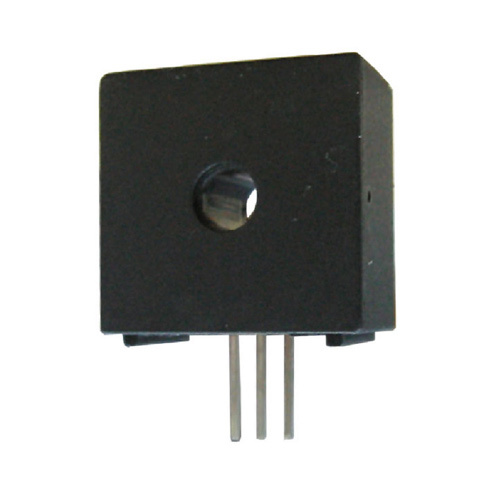

Closed Loop Hall Effect Current Sensor

B201 Current Sensor

Item No.: B201
B201 series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit.
Description
Description
Introduce

B201 series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Applications
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
Directions for use
When the current will be measured goes through a sensor, the current will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)
Custom design in the different rated input current and the output current are available.
Technical Parameter



Type B201-10A B201-20A B201-30A B201-40A Unit
Rated current(Ipn) 10 20 30 40 A
Measure range(Ip) 20 40 60 80 A
Turns ratio(Np/Ns) 1:1000 1:1000 1:1000 1:1600 T
Measure resister 1230±0.1% 594±0.1% 467±0.1% 420±0.1% Ω
Rated output 10 20 25 25 mA
Coil resister 43 43 43 90 Ω
Supply voltage ±12,±15 V
Power Consumption ≤20+ IpX(Np/Ns) mA
Offset current @Ip=0                     ±0.15 mA
Offset drift @ -40~+85℃              ≤±0.5 mA
Linearity @Ip=0-±Ipn                ≤0.1 %FS
Total precision  ≤±0.7 %
di/dt accurately followed >50 A /μS
Response time @100A/μ S,10%-90%        ≤500 ns
Galvanic isolation @ 50HZ,AC,1min             2.5 KV
Bandwidth @ -1db                    DC~200 KHZ

Dimensions



Mechanical dimension(for reference only) Note

1. All dimensions are in mm.

2. General tolerance ±1mm.

3. Elucidation:  1:+5V  2:OV  3:V0UT

General date Value Unit
Operating temperature(TA) -40 to +85
Storage temperature(TS) -40 to +125
Mass(approx) (M) 10 g

Accuracy test

Pulse current signal response characteristic Effects of impulse noise

( Input signal )

( Output signal )

( Output voltage )

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000
