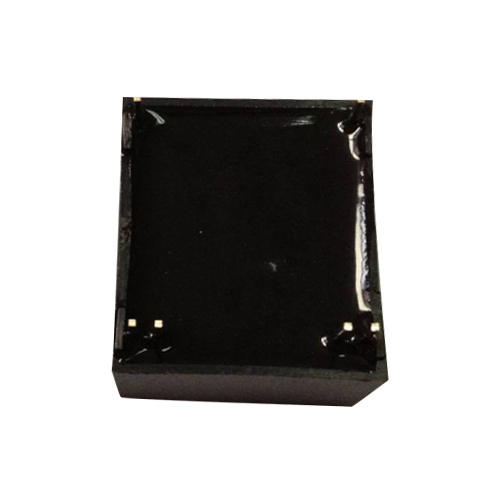

B2N Type Current Sensor

Item No.: B2N
B2N series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit.
Description
Description
Introduce

B2N series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Applications
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
Directions for use
When the current will be measured goes through a sensor, the current will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)
Custom design in the different rated input current and the output current are available.
Technical Parameter



Type B2N-0.5A B2N-1A B2N-2A B2N-5A B2N-10A B2N-20A Unit
Rated current(Ipn) 0.5 1 2 5 10 20 A
Measure range(Ip) 1 2 4 10 20 30 A
Turns ratio(Np/Ns) 30:1500 15:1500 8:1600 3:1500 2:2000 1:2000 T
Internal resister 400 400 400 400 400 400 Ω
Rated output @Ip=±Ipn               ±4±0.5% V
Supply voltage ±12,±15 V
Power Consumption ≤20+ IpX(Np/Ns) mA
Zero offset voltage @Ip=0                     ≤±20 mV
Offset voltage drift @ -40~+85℃              ≤±0.5 mV /℃
Linearity @Ip=0-±Ipn                ≤0.1 %FS
Response time @100A/μ S,10%-90%        ≤1 μS
Galvanic isolation @ 50HZ,AC,1min             2.5 KV

Dimensions

Mechanical dimension(for reference only)
Current d Connected Terminal PIn Identification
1 0.5A-3A 2-ø0.6 5,10

1……+15V

2……-15V

3……0V

4……Output

5.6,7...primary input current(+)

8,9,10...primary input current(-)

2 5A,10A 2-ø0.6 6,9
3 20A 4-ø1.6 6-7,8-9

General date Value Unit
Operating temperature(TA) -40 to +85
Storage temperature(TS) -40 to +125
Mass(approx) (M) 22 g

Accuracy test

Pulse current signal response characteristic Effects of impulse noise

( Input signal )

( Output signal )

( Output voltage )

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000

24Hs online service
365Ds NON-Stop Production 20Ys Professional Manufacturers
Professional designer and manufacturer of current transformer,
cooperated with Siemens ,schneider Fuji electrical softbank LG samdsung.
