Home > Current Sensor > Closed Loop Hall Effect C...

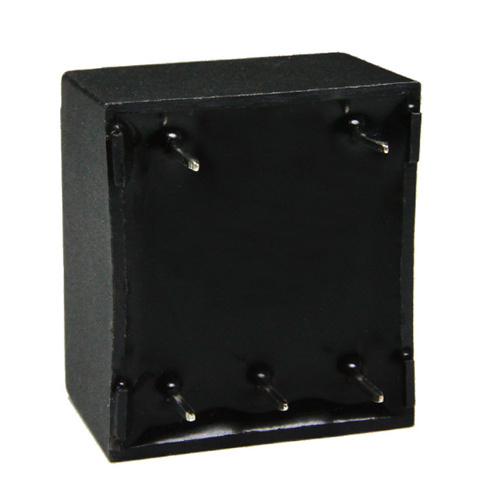

B2X Type Current Sensor
B2X Type Current Sensor B2X Type Current Sensor B2X Type Current Sensor
  • B2X Type Current Sensor

B2X Type Current Sensor

Item No.: B2X
B2X series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit.
Add to Inquiry
Description
Description
Introduce

B2X series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Applications
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
Directions for use
When the current will be measured goes through a sensor, the current will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)
Custom design in the different rated input current and the output current are available.
Technical Parameter



Type B2X-1A B2X-2A B2X-3A B2X-5A Unit
Rated current（Ipn） 1 2 3 5 A
Measure range（Ip） 2 4 6 10 A
Turns ratio(Np/Ns) 25：1000 12:960 8:960 5:1000 T
Measure resister 100～460 100～460 100～205 100～205 Ω
Rated output 25 25 25 25 mA
Supply voltage ±12，±15 V
Power Consumption ≤20+ IpX(Np/Ns) mA
Offset current @Ip=0                     ±0.15 mA
Offset drift @ -40～+85℃              ≤±0.4 mA
Linearity @Ip=0-±Ipn                ≤0.1 %FS
Response time @100A/μ S,10%-90%        ≤1 μS
Galvanic isolation @ 50HZ,AC,1min             2.5 KV

Dimensions



Mechanical dimension(for reference only) Note

1. All dimensions are in mm.

2. General tolerance ±1mm.

General date Value Unit
Operating temperature(TA) -40 to +85 ℃
Storage temperature(TS) -40 to +125 ℃
Mass(approx) (M) 22 g

Accuracy test

Pulse current signal response characteristic Effects of impulse noise

( Input signal )

( Output signal )

 ( Output voltage )

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000
