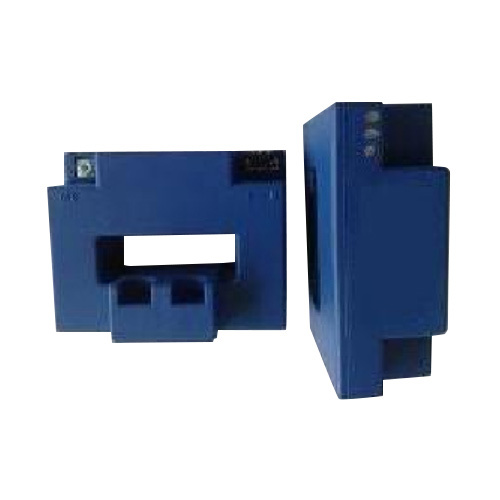

B4X Type Current Sensor

B4X Type Current Sensor

Description

Description

Introduce

B4X series current sensor is a closed loop device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Applications

Variable speed drives

Welding machine

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Electrochemical.

Directions for use

When the current will be measured goes through a sensor, the current will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)

Custom design in the different rated input current and the output current are available.

Technical Parameter

Type	B4X-200A	B4X-300A	B4X-400A	B4X-500A	Unit
Rated current(Ipn)	±200	±300	±400	±500	A
Measure range(Ip)	0—±300	0—±450	0—±600	0—±750	A
Turns ratio(Np/Ns)	1:2000	1:3000	1:4000	1:5000	T
Measure resister with±12V	@±200Amax 0(min)88(max)	@±300Amax 0(min)76(max)	@±400Amax 0(min)63(max)	@±500Amax 0(min)46(max)	Ω

	@±300Amax 0(min)50(max)	@±450Amax 0(min)38(max)	@±600Amax 0(min)25(max)	@±750Amax 0(min)8 (max)	Ω

Measure resister with±15V	@±200Amax 0(min)117(max)	@±300Amax 0(min)105(max)	@±400Amax 0(min)92(max)	@±500Amax 0(min)75(max)	Ω

	@±300Amax 0(min)69(max)	@±450Amax 0(min)57(max)	@±600Amax 0(min)44(max)	@±750Amax 0(min)27(max)	Ω

Coil resister	19	31	44	61	Ω
Rated output	@Ip=±Ipn ±100±1%				mA
Supply voltage	±12，±15，±18				V
Power Consumption	≤20+IpX(Np/Ns)				mA
Offset current	@Ip=0 ±0.2				mA
Offset drift	@ -40～+85℃ ≤±0.5				mA
Linearity	@Ip=0-±Ipn ≤0.1				%FS
Response time	@50A/μS, 10%-90% ≤1				μS
Galvanic isolation	@ 50HZ,AC,1min 6				KV
di/dt	＞100				A/us
Bandwidth	@ -1dB 0～150				KHZ

Dimensions

Mechanical dimension(for reference only)

Remark

1. All dimensions are in mm.

2. General tolerance ±1mm.

3. Elucidation: 1:+15V 2:–15V 3:I0UT 4:NC

General date	Value	Unit
Operating temperature(TA)	-40 to +85	℃
Storage temperature(TS)	-40 to +125	℃
Mass(approx) (M)	162	g

Accuracy test

Pulse current signal response characteristic

Effects of impulse noise

( Input signal )

( Output signal )

( Output voltage )

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000
