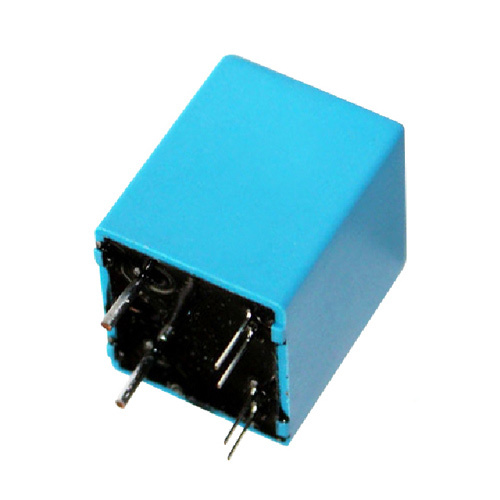

B8X Type Current Sensor

B8X Type Current Sensor

Description

Description

Introduce

B8X series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Applications

AC variable speed drives

Static converters for DC motor drives

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Switched Mode Power Supplies (SMPS)

Power supplies for welding applications

Directions for use

When the current will be measured goes through a sensor, the current will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)

Custom design in the different rated input current and the output current are available.

Technical Parameter

Type	B8X-05A	B8X-10A	B8X-15A	B8X-20A	B8X-25A	B8X-30A	Unit
Type	B8X-05A	B8X-10A	B8X-15A	B8X-20A	B8X-25A	B8X-30A	Unit
Rated current（Ipn）	5	10	15	20	25	30	A
Measure range（Ip）	10	20	30	40	50	60	A
Turns ratio(Np/Ns)	5:2500	3:3000	2:3000	1:2000	1:2500	1:3000	T
Internal resister	400	400	400	400	400	400	Ω
Size of input pins	￠0.6	￠0.8	￠1.0	￠1.4	￠1.4	￠1.6	mm
Rated output	@Ip=±Ipn ±4±0.5%						V
Supply voltage	±12V，±15V						V
Power Consumption	≤25						mA
Zero offset voltage	@Ip=0 ≤±30						mV
Offset voltage drift	@ -40～+85℃ ≤±0.5						mV /℃
Linearity	@Ip=0-±Ipn ≤0.1						%FS
Response time	@50A/μ S,10%-90% ≤1						μS
Galvanic isolation	@ 50HZ,AC,1min 2.5						KV

Dimensions

Mechanical dimension(for reference only)

Note

1……Output

2……+15V

3……-15V

4……0V

5…...primary input current(-)

6…...primary input current(+)

1. All dimensions are in mm.

2. General tolerance ±1mm

General date	Value	Unit
Operating temperature(TA)	-40 to +85	℃
Storage temperature(TS)	-40 to +125	℃
Mass(approx) (M)	15	g

Accuracy test

Pulse current signal response characteristic

Effects of impulse noise

( Input signal )

( Output signal )

( Output voltage )

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000
