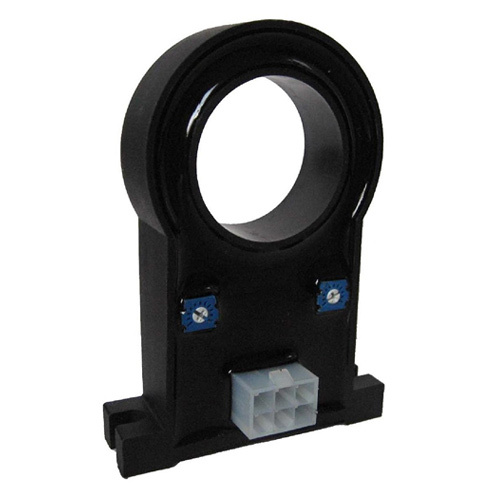

C1X series hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.
Type | C1X-100A | C1X-200A | C1X-300A | C1X-400A | C1X-500A | Unit |
Rated current(Ipn) | ±100 | ±200 | ±300 | ±400 | ±500 | A |
Measure range(Ip) | 0—±200 | 0—±400 | 0—±600 | 0—±800 | 0—±1000 | A |
Rated output | @Ip=±Ipn ±4±1% | V | ||||
Supply voltage | ±12,±15 | V | ||||
Power Consumption | <25 | mA | ||||
Offset voltage | @Ip=0 ±20 | mV | ||||
Magnetic offset | @Ip=±Ipn-0 ±20 | mV | ||||
Offset drift | @ -40~+85℃ ≤±1 | mV/℃ | ||||
Output drift | @ -40~+85℃ ≤±1 | mV/℃ | ||||
Linearity | @Ip=0-±Ipn ≤1 | %FS | ||||
Response time | @50A/μS, 10%-90% ≤5 | μs | ||||
Galvanic isolation | @ 50HZ,AC,1min 2.5 | KV | ||||
Isolation resistance | @ DC 500V 1000 | MΩ |
Dimensions
Mechanical dimension(for reference only) |
Remarks |
1. All dimensions are in mm. 2. General tolerance ±1mm. 3. Elucidation: 1:+15V 2:–15V 3:V0UT 4:0V |
|
General date | Value | Unit |
Operating temperature(TA) | -40 to +85 | ℃ |
Storage temperature(TS) | -40 to +125 | ℃ |
Mass(approx) (M) | 78 | g |
Accuracy test
Pulse current signal response characteristic | Effects of impulse noise | ||
( Input signal ) ( Output signal ) |
( Output voltage ) |
Standards
UL94-V0.
EN60947-1:2004
IEC60950-1:2001
EN50178:1998
SJ 20790-2000
