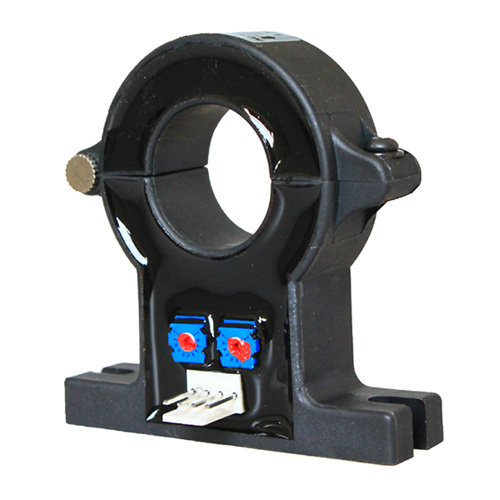

C2T Type Current Sensor

C2T Type Current Sensor

Description

Description

Introduce

C2T series dismountable hall effect current Sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC currents.

Applications

AC variable speed drives

Static converters for DC motor drives

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Switched Mode Power Supplies (SMPS)

Power supplies for welding applications

Directions for use

When the current will be measured goes through a sensor, the current will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)

Custom design in the different rated input current and the output current are available.

Technical Parameter

Type	C2T-50A	C2T-100A	C2T-200A	C2T-400A	C2T-600A	Unit
Rated current(Ipn)	±50	±100	±200	±400	±600	A
Measure range(Ip)	0—±75	0—±150	0—±300	0—±600	0—±900	A
Rated output	@Ip=±Ipn ±2±1%					V
Zero voltage	@Ip=0 5±0.5%					V
Supply voltage	+12，+15，+24					V
Power Consumption	≤15					mA
Zero offset voltage	@Ip=0 ±20					mV
Magnetic offset	@Ip=±Ipn-0 ±15					mV
Offset drift	@ -40～+85℃ ≤±0.5					mV/℃
Output drift	@ -40～+85℃ ≤±0.5					mV/℃
Linearity	@Ip=0-±Ipn ≤1					%FS
Response time	@50A/μS, 10%-90% ≤7					μs
Galvanic isolation	@ 50HZ,AC,1min 2.5					KV

Dimensions

Mechanical dimension(for reference only)

Note

1. All dimensions are in mm.

2. General tolerance ±1mm.

3. Elucidation: 1:+15V 2:–15V 3:V0UT 4:0V

General date	Value	Unit
Operating temperature(TA)	-40 to +85	℃
Storage temperature(TS)	-40 to +125	℃
Mass(approx) (M)	65	g

Accuracy test

Pulse current signal response characteristic

Effects of impulse noise

( Input signal )

( Output signal )

( Output voltage )

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000
