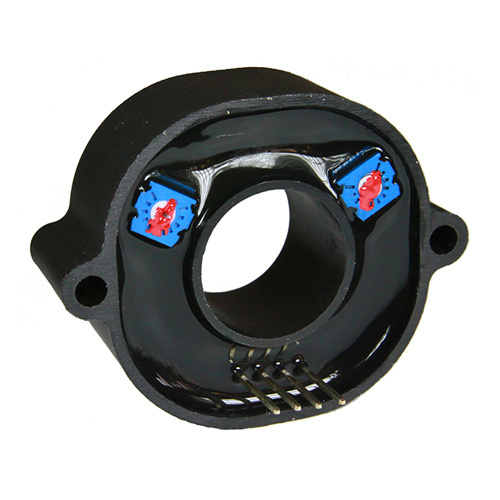

C5N Type Current Sensor
C5N Type Current Sensor C5N Type Current Sensor C5N Type Current Sensor
  • C5N Type Current Sensor

C5N Type Current Sensor

Item No.: C5N
C5N series hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit.
Add to Inquiry
Description
Description
Introduce

C5N series hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Applications
Variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
Directions for use
When the current will be measured goes through a sensor, the current will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)
Custom design in the different rated input current and the output current are available.
Technical Parameter



Type C5N-200A C5N-400A C5N-600A C5N-800A C5N-1000A Unit
Rated current(Ipn) ±200 ±400 ±600 ±800 ±1000 A
Measure range(Ip) 0—±400 0—±800 0—±1200 0—±1200 0—±1200 A
Rated output @Ip=±Ipn ±4±1% V
Supply voltage ±12，±15 V
Power Consumption <25 mA
Offset voltage @Ip=0 ±20 mV
Magnetic offset @Ip=±Ipn-0 ±20 mV
Offset drift @ -40～+85℃ ≤±1 mV/℃
Output drift @ -40～+85℃ ≤±1 mV/℃
Linearity @Ip=0-±Ipn ≤1 %FS
Response time @50A/μS, 10%-90% ≤5 μs
Galvanic isolation @ 50HZ,AC,1min 2.5 KV
Isolation resistance @ DC 500V 1000 MΩ

Dimensions



Mechanical dimension(for reference only) Remark

1.All dimensions are in mm.

2.General tolerance ±1mm.

3. Elucidation:  1:+15V  2:–15V  3:V0UT  4:0V

General date Value Unit
Operating temperature(TA) -40 to +85 ℃
Storage temperature(TS) -40 to +125 ℃
Mass(approx) (M) 60 g

Accuracy test

Pulse current signal response characteristic Effects of impulse noise

( Input signal )

( Output signal )

 ( Output voltage )

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000
