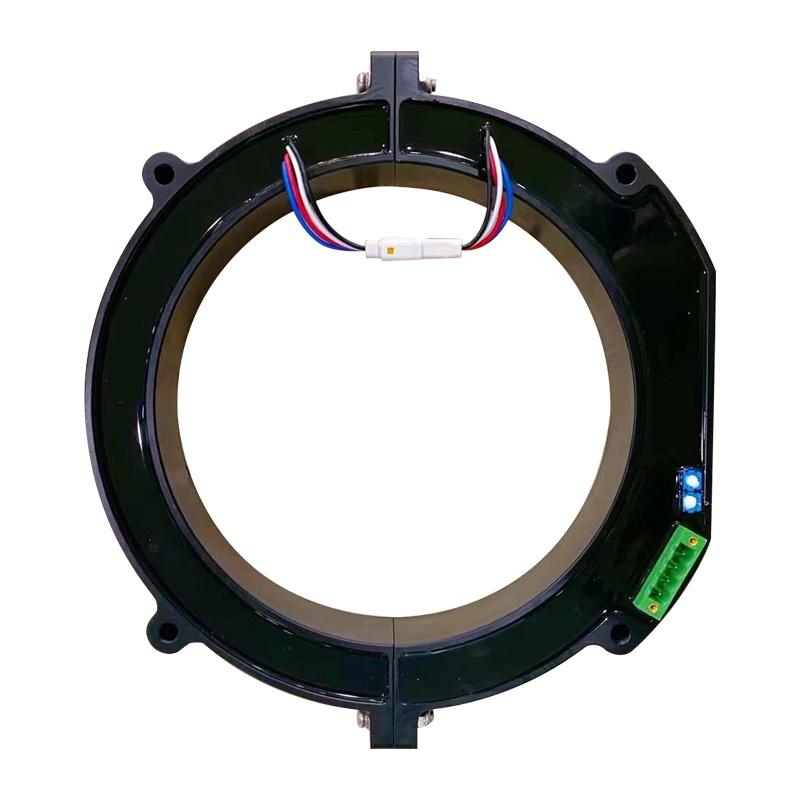

C62 Type Current Sensor

C62 Type Current Sensor

Description

Description

Introduce

C62 series dismountable hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Directions for use

When the current will be measured goes through a sensor, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the sensor) .

Customs can adjust output amplitude of the sensor by needs.

Custom design in the different rated input current and the output voltage are available.

Feature

Variable speed drives

Welding machine

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Electrochemical

Technical Parameter

Type	C62-300A	C62-1000A	C62-2000A	C62-4000A	C62-6000A	Unit
Rated current(Ipn)	±300	±1000	±2000	±4000	±6000	A
Measure range(Ip)	0—±600	0—±2000	0—±3000	0—±5000	0—±6500	A
Rated output	@Ip=±Ipn ±4±1%					V
Supply voltage	±12，±15					V
Power Consumption	<25					mA
Offset voltage	@Ip=0 ±20					mV
Magnetic offset	@Ip=±Ipn-0 ±20					mV
Offset drift	@ -40～+85℃ ≤±1					mV/℃
Output drift	@ -40～+85℃ ≤±1					mV/℃
Linearity	@Ip=0-±Ipn ≤1					%FS
Response time	@50A/μS, 10%-90% ≤5					μs
Galvanic isolation	@ 50HZ,AC,1min 5					KV
Isolation resistance	@ DC 500V 1000					MΩ

Dimensions

Mechanical dimension(for reference only)

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000
