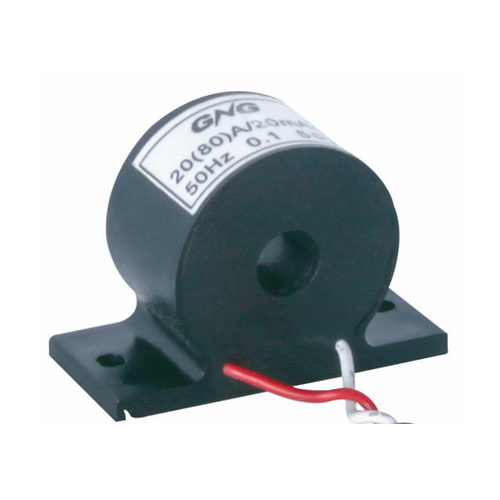

CT-006 Mini Current Transformer

Item No.: CT-006
Used for electric energy meter measurement, used as zero-sequence transformer, widely used in relay protection and other fields.
Description
Description
Description:
Various mechanical dimensions, highly customer-tailored;
There are standard holes on the external casing for fixing with standard bolts;
Linear output current, high precision;
Small volume, light weight, easy for installation;
ABS anti-combustion plastic casing;
Encapsulated with epoxy resin to ensure strong insulation ability.
Regular spec. and parameters



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
HY-CT-006 5(30)A/5mA 5A 30A 5mA 100mV 20Ω 0.1
10(60)A/10mA 10A 60A 10mA 100mV 10Ω 0.1
10(100)A/5mA 10A 100A 5mA 50mV 10Ω 0.1
20(100)A/20mA 20A 100A 20mA 100mV 0.1



Dimensions



Mechanical dimension(for reference only) Note
