Home > Mini Current Transformer > Bus Bar-Type Current tran...

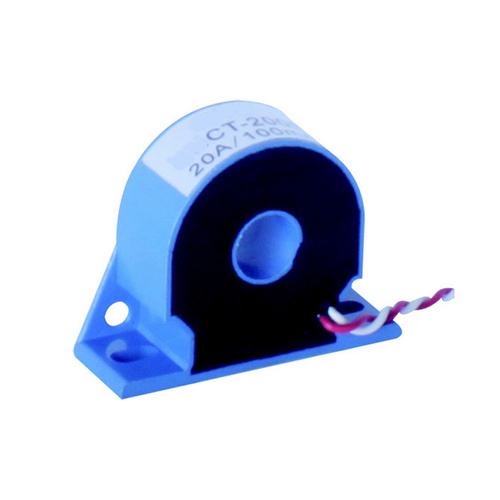

CT-009 Mini Current Transformer
CT-009 Mini Current Transformer CT-009 Mini Current Transformer CT-009 Mini Current Transformer
  • CT-009 Mini Current Transformer

CT-009 Mini Current Transformer

Item No.: CT-009
Used for electric energy meter measurement, used as zero-sequence transformer, widely used in relay protection and other fields.
Add to Inquiry
Description
Description
Description:
Various mechanical dimensions, highly customer-tailored;
There are standard holes on the external casing for fixing with standard bolts;
Linear output current, high precision;
Small volume, light weight, easy for installation;
ABS anti-combustion plastic casing;
Encapsulated with epoxy resin to ensure strong insulation ability.
Regular spec. and parameters



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
HY-CT-009 20A/100mA 20A 40A 100mA 1000mV 10Ω 0.2
20(100)A/20mA 20A 100A 20mA 200mV 10Ω 0.1
50(200)A/25mA 50A 200A 25mA 250mV 10Ω 0.1
200A/100mA 200A 240A 100mA 500mV 5Ω 0.2



Dimensions



Mechanical dimension(for reference only) Note
