Home > Mini Current Transformer > Bus Bar-Type Current tran...

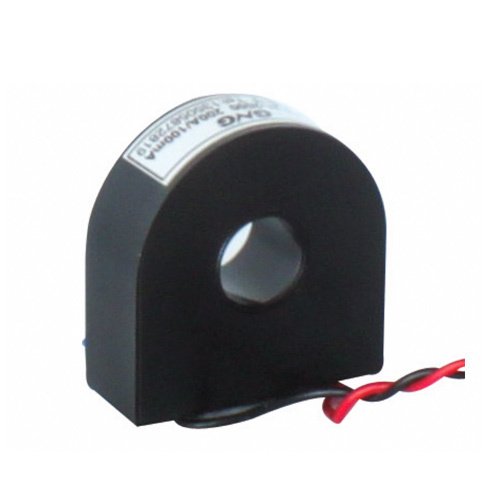

CT-010 Mini Current Transformer
CT-010 Mini Current Transformer CT-010 Mini Current Transformer CT-010 Mini Current Transformer
  • CT-010 Mini Current Transformer

CT-010 Mini Current Transformer

Item No.: CT-010
Used for electric energy meter measurement, used as zero-sequence transformer, widely used in relay protection and other fields.
Add to Inquiry
Description
Description
Description:
Various mechanical dimensions, highly customer-tailored;
There are standard holes on the external casing for fixing with standard bolts;
Linear output current, high precision;
Small volume, light weight, easy for installation;
ABS anti-combustion plastic casing;
Encapsulated with epoxy resin to ensure strong insulation ability.
Regular spec. and parameters



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
HY-CT-010 20(200)A/10mA 20A 200A 100mA 1000mV 10Ω 0.2
100A/100mA 100A 120A 20mA 200mV 10Ω 0.1
200A/100mA 200A 240A 25mA 250mV 10Ω 0.1
120A/48mA 120A 144A 100mA 500mV 5Ω 0.2



Dimensions



Mechanical dimension(for reference only) Sample
