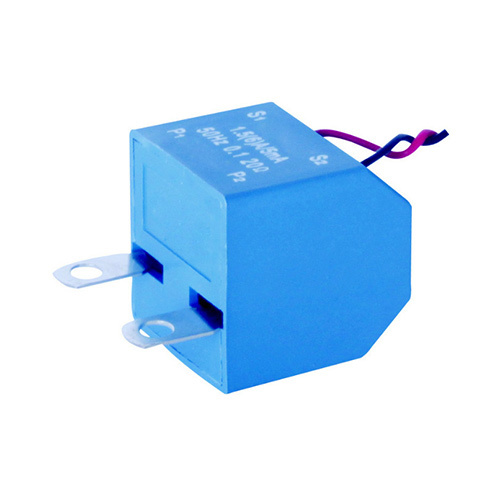

CT-105 Mini Current Transformer
CT-105 Mini Current Transformer CT-105 Mini Current Transformer CT-105 Mini Current Transformer
  • CT-105 Mini Current Transformer

CT-105 Mini Current Transformer

Item No.: CT-105
Mini current transformer class 0.1 precision for energy meter;
Suitable for a wide range of current(1.5A~120A);
Add to Inquiry
Description
Description
Description:
Suitable for a wide range of current(1.5A~120A);
There are standard holes on the primary lead wire; therefore, can be fixed at the terminal of the electricity meters with standard bolts, which makes it both firm and convenient;
The primary lead wire is highly customer-tailored with more than 100 specifications;
Encapsulated with epoxy resin to ensure strong insulation ability;
Linear output current, high precision;
PBT anti-combustion pladtic casing.
Regular spec. and parameters



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
HY-CT-105 1.5(6)A/5mA 1.5A 6A 5mA 100mV 20Ω 0.1
1.5(7.5)A/5mA 1.5A 7.5A 5mA 100mV 20Ω 0.1
1.5(6)A/7.5mA 1.5A 6A 7.5mA 75mV 10Ω 0.1



Dimensions



Mechanical dimension(for reference only) Sample
