Home > Mini Current Transformer > Loading-Type Current tran...

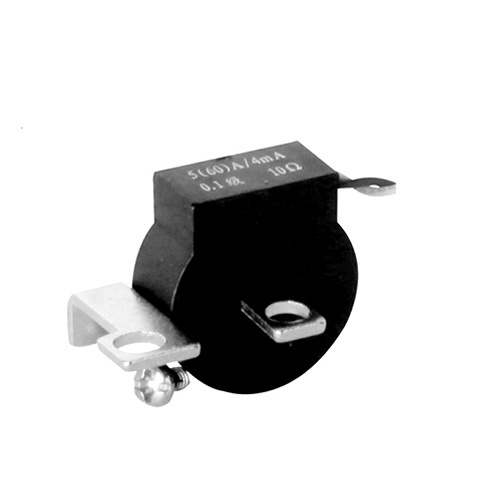

CT-109 MiniCurrent Transformer
CT-109 MiniCurrent Transformer CT-109 MiniCurrent Transformer CT-109 MiniCurrent Transformer
  • CT-109 MiniCurrent Transformer

CT-109 MiniCurrent Transformer

Item No.: CT-109
Mini current transformer class 0.1 precision for energy meter;
Suitable for a wide range of current(5A~10A);
Add to Inquiry
Description
Description
Description:
Suitable for a wide range of current(1.5A~120A);
There are standard holes on the primary lead wire; therefore, can be fixed at the terminal of the electricity meters with standard bolts, which makes it both firm and convenient;
The primary lead wire is highly customer-tailored with more than 100 specifications;
Encapsulated with epoxy resin to ensure strong insulation ability;
Linear output current, high precision;
PBT anti-combustion pladtic casing.
Regular spec. and parameters



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
HY-CT-109 5(30)A/5mA 5A 30A 5mA 50mV 10Ω 0.2/0.1
5(30)A/2.5mA 5A 30A 2.5mA 50mV 20Ω 0.2/0.1
10(60)A/10mA 10A 60A 10mA 50mV 5Ω 0.2/0.1
10(60)A/5mA 10A 60A 5mA 50mV 10Ω 0.2/0.1



Dimensions



Mechanical dimension(for reference only) Sample
