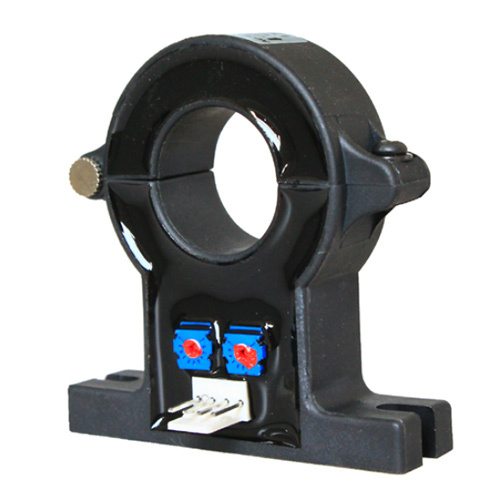

D-C2T Type Current Sensor
D-C2T Type Current Sensor D-C2T Type Current Sensor D-C2T Type Current Sensor
  • D-C2T Type Current Sensor

D-C2T Type Current Sensor

Item No.: D-C2T
D-C2T series dismountable hall effect current Sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit.
Add to Inquiry
Description
Description
Introduce

D-C2T series dismountable hall effect current Sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC currents.

Applications
Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
Directions for use
When the current will be measured goes through a sensor, the current will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)
Custom design in the different rated input current and the output current are available.
Technical Parameter



Type D-C2T-100A D-C2T-200A D-C2T-300A D-C2T-400A D-C2T-500A Unit
Rated current(Ipn DC) 100 200 300 400 500 A
Measure range(Ip DC) 0—150 0—300 0—450 0—600 0—750 A
Rated output @Ip=±Ipn DC 4 V
Supply voltage +12V，+15V，+24V V
Power Consumption <25 mA
Offset voltage @Ip=0 ±20 mV
Magnetic offset @Ip=±Ipn-0 ±20 mV
Offset drift @ -40～+85℃ ≤±1 mV/℃
Output drift @ -40～+85℃ ≤±1 mV/℃
Linearity @Ip=0-±Ipn ≤1 %FS
Response time @50A/μS, 10%-90% ≤7 μs
Galvanic isolation @ 50HZ,AC,1min 2.5 KV

Dimensions



Mechanical dimension(for reference only) Pulse current signal response characteristic

Remark：

1.All dimensions are in mm.

2. General tolerance ±1mm.

3. Elucidation:  1:+15V  2:–15V  3:V0UT  4:0V

General date Value Unit
Operating temperature(TA) -40 to +85 ℃
Storage temperature(TS) -40 to +125 ℃
Mass(approx) (M) 70 g

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000
