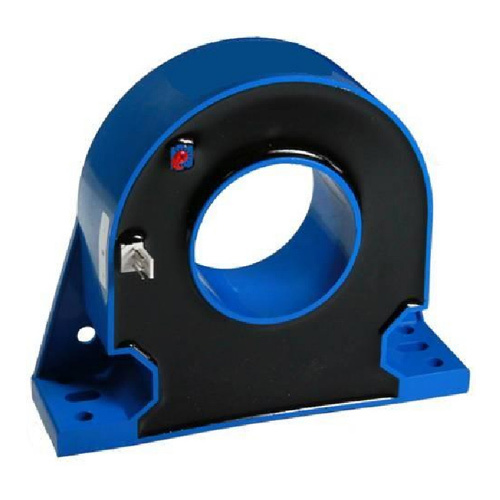

The D7 Series current sensor is a closed loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit, the size of primary doesn’t affect test precision, no matter the location of primary in the hole of current sensor. It can really measure resolution 1000:1, it uses for precision measurement of DC, AC and pulse current.
Type | D7-1000A | Unit |
Rated current(Ipn) | ±1000 | A |
Measure range(Ip) | 0—±2000 | A |
Turns ratio(Np/Ns) | 1:5000 | T |
Measure resister | @±1000Amax, 0(min)30(max) | Ω |
with±15V | @±2000Amax, 0(min)20(max) | Ω |
Measure resister | @±1000Amax, 0(min)75(max) | Ω |
with±24V | @±2000Amax, 0(min)15(max) | Ω |
Coil resister | 37 | Ω |
Rated output | 200 | mA |
Supply voltage | ±15,±18,±24 | V |
Power Consumption | ≤20+IpX(Np/Ns) | mA |
Offset current | @Ip=0 ±0.2 | mA |
Offset drift | @ -40~+85℃ ≤±0.25 | mA |
Linearity | @Ip=0-±Ipn ≤0.1 | %FS |
Response time | @50A/μS, 10%-90% ≤1 | μS |
Galvanic isolation | @ 50HZ,AC,1min 6 | KV |
di/dt | >100 | A/us |
Bandwidth | @ -1dB 0~100 | KHZ |
Dimensions
Mechanical dimension(for reference only) | Note |
1. All dimensions are in mm. 2. General tolerance ±1mm. 3. Elucidation: 1:+15V 2:–15V 3:I0UT |
|
General date | Value | Unit |
Operating temperature(TA) | -40 to +85 | ℃ |
Storage temperature(TS) | -40 to +125 | ℃ |
Mass(approx) (M) | 460 | g |
Accuracy test
Pulse current signal response characteristic | Effects of impulse noise | ||
( Input signal ) ( Output signal ) |
( Output voltage ) |
Standards
UL94-V0.
EN60947-1:2004
IEC60950-1:2001
EN50178:1998
SJ 20790-2000
