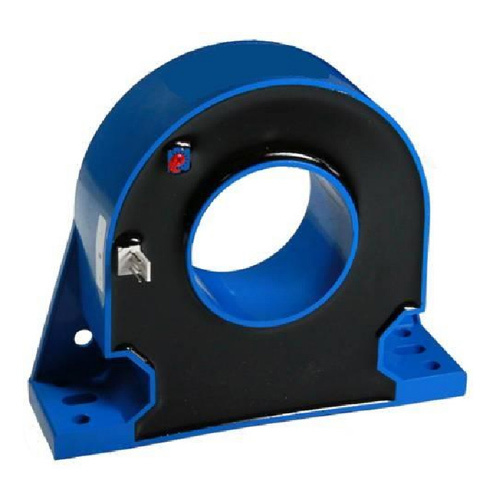

D9 Type Current Sensor

D9 Type Current Sensor

Description

Description

Introduce

The D9 Series current sensor is a closed loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit, the size of primary doesn’t affect test precision, no matter the location of primary in the hole of current sensor. It can really measure resolution 1000:1, it uses for precision measurement of DC, AC and pulse current.

Applications

Variable speed drives

Welding machine

Battery supplied applications

Electrochemical

Uninterruptible Power Supplies (UPS)

Directions for use

When the current will be measured goes through a sensor, the current will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)

Custom design in the different rated input current and the output current are available.

Technical Parameter

Type	D9-2000A	Unit
Rated current(Ipn)	±2000	A
Measure range(Ip)	0—±3000	A
Turns ratio(Np/Ns)	1：5000	T
Measure resister	@±2000Amax， 0(min)8(max)	Ω
with±15V	@±3000Amax， 0(min)5(max)	Ω
Measure resister	@±2000Amax， 5(min)29(max)	Ω
with±24V	@±3000Amax， 5(min)11(max)	Ω
Coil resister	25	Ω
Rated output	400	mA
Supply voltage	±15，±18，±24	V
Power Consumption	≤20+IpX(Np/Ns)	mA
Offset current	@Ip=0 ±0.2	mA
Offset drift	@ -40～+85℃ ≤±0.25	mA
Linearity	@Ip=0-±Ipn ≤0.1	%FS
Response time	@50A/μS, 10%-90% ≤1	μS
Galvanic isolation	@ 50HZ,AC,1min 6	KV
di/dt	＞100	A/us
Bandwidth	@ -1dB 0～100	KHZ

Dimensions

Mechanical dimension(for reference only)

Note

1. All dimensions are in mm.

2. General tolerance ±1mm.

3. Elucidation: 1:+15V 2:–15V 3:I0UT

General date	Value	Unit
Operating temperature(TA)	-40 to +85	℃
Storage temperature(TS)	-40 to +125	℃
Mass(approx) (M)	1300	g

Accuracy test

Pulse current signal response characteristic

Effects of impulse noise

( Input signal )

( Output signal )

( Output voltage )

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000
