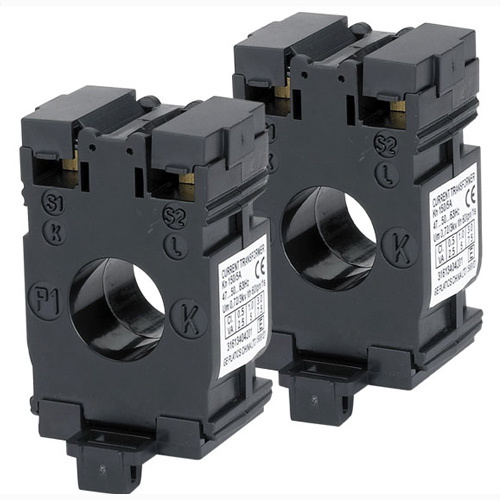

DM Type Current Transformer
DM Type Current Transformer DM Type Current Transformer DM Type Current Transformer
  • DM Type Current Transformer

DM Type Current Transformer

Item No.: DM
DM series current transformers can be used in AC circuits with rated voltage below 660V and frequency of 50-60Hz.
Add to Inquiry
Description
Description
Introduce

DM series current transformers can be used to test, control, display and record the operation of electrical equipment and protect the equipment from damage.
DM can also be used in matching mine transformers.

Applications
Current measurement, monitoring and piotection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting,air compressor, heating and ventilation system.
Air-condition equipment and Current, power and energy monitoring device.
Relay protection device.
Features
The DM series of current transfomer are convenient for mounting in many ways.
The most current transformer need the special mounting and the DM series used，the mounting of DIN typing without a lot of time.
The protective cover for the terminal block used the switching device with safety and quick
AC circuit. Two built in fixing methods: DIN rail; Busbar mounting.
Compact design .Built in hinged terminal cover .
Primary current from 15A to 300A.
Technical Parameter



Electrical Parameter Mechanical Parameter
Frequency 50/60Hz Case PC/UL94-V0
Rated Input 1A-5000A Bobbin PBT
Measuring range 5%In-120%In Core Silicon steel
Rated Output 1A,5A Construction Screw
Ratio Voltage 0.72KV (AC) Operating Temp －25℃～＋75℃
Dielectric strength 3.0KV/1mA/1min Operating Humidity ≤85%
Insulation Resistance DC500V/100MΩ min Output Connection Terminal



Specification



Type Ratio (A) Burden (VA)  Frequency(Hz)
Class: 1.0
DM-20 15/5A 1.5(5T) 50/60
20/5A 2.5(5T) 50/60
25/5A 2.5(4T) 50/60
30/5A 2.5(4T) 50/60
40/5A 2.5(3T) 50/60
50/5A 2.5(2T) 50/60
60/5A 1.5 50/60
75/5A 1.5 50/60
80/5A 1.5 50/60
100/5A 2.5 50/60
125/5A 2.5 50/60
150/5A 2.5 50/60
200/5A 3.75 50/60
250/5A 3.75 50/60
300/5A 3.75 50/60



Type Ratio (A) Burden (VA)  Frequency(Hz)
Class: 1.0
DM-30 100/5A 2.5 50/60
125/5A 2.5 50/60
150/5A 2.5 50/60
200/5A 2.5 50/60
250/5A 2.5 50/60
300/5A 2.5 50/60



Dimensions



DM-20 DM-20



Accuracy test



Installation method
