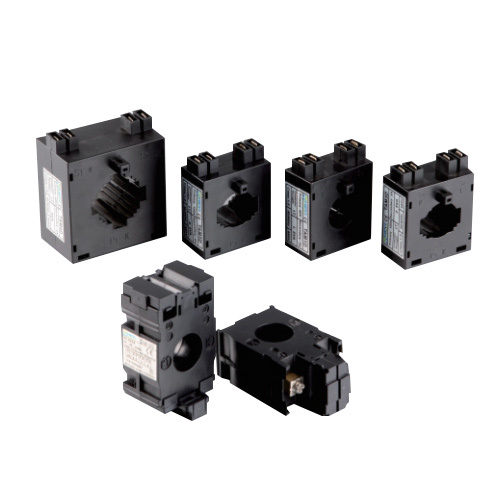

DX Type current transformers

Item No.: DX
The DM series current transformers (CT) are installed in electric systems to reduce the line current to a secondary value of 5A, which is compatible with current inputs of digital multimeters or protection relays.
Description
Description
Introduce

The DM series current transformers (CT) are installed in electric systems to reduce the line current to a secondary value of 5A, which is compatible with current inputs of digital multimeters or protection relays.These are without primary winding and are used for high primary current values from 50A upward.The number of loops of the primary cable does not modify the accuracy but converts the primary current value proportional to secondary current.


Applications
Current measurement, monitoring and piotection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation - control system.
Current, power and energy monitoring device.
Relay protection device.
Features
Safe, easy to install, portable.
Wide inner window, allowing clamping of big cables or bus-bars.
Wide range of sizes to accommodate all the existing installations.
Technical Parameter



Electrical Parameter Mechanical Parameter
Frequency 50/60Hz Case PC/UL94-V0
Rated Input 1A-5000A Bobbin PBT
Measuring range 5%In-120%In Core Silicon steel
Rated Output 1A,5A Construction Screw
Ratio Voltage 0.72KV (AC) Operating Temp -25℃~+75℃
Dielectric strength 3.0KV/1mA/1min Operating Humidity ≤85%
Insulation Resistance DC500V/100MΩ min Output Connection Terminal



Specification



Type Current Ratio  Burden(VA) Frequency(Hz)
class:0.5 class:1.0
DX-20 5/5A 1.5 2.5 50/60
10/5A 1.5 2.5 50/60
15/5A 1.5 2.5 50/60
20/5A 1.5 2.5 50/60



Type Current Ratio  Burden(VA) Frequency(Hz)
class:0.5 class:1.0
DX-30 100/5A - 2.5 50/60
150/5A - 2.5 50/60
200/5A 1.5 2.5 50/60
250/5A 2.5 2.5 50/60
300/5A 2.5 2.5 50/60
400/5A 2.5 2.5 50/60
500/5A 2.5 2.5 50/60



Type Current Ratio  Burden(VA) Frequency(Hz)
class:0.5 class:1.0
DX-40 150/5A - 2.5 50/60
200/5A 2.5 2.5 50/60
250/5A 2.5 5 50/60
300/5A 5 5 50/60
400/5A 5 5 50/60
500/5A 5 5 50/60
600/5A 5 10 50/60
800/5A 5 10 50/60
1000/5A 5 10 50/60



Type Current Ratio  Burden(VA) Frequency(Hz)
class:0.5 class:1.0
DX-125 800/5A 5 10 50/60
1000/5A 7.5 12.5 50/60
1200/5A 10 15 50/60
1250/5A 10 15 50/60
1500/5A 15 25 50/60
1600/5A 15 25 50/60
2000/5A 15 25 50/60
2250/5A 15 25 50/60
2500/5A 15 25 50/60
3000/5A 15 25 50/60
4000/5A 20 30 50/60
5000/5A 20 30 50/60
6000/5A 20 30 50/60



Dimensions

DX-20 DX-30
DX-40 DX-125

Accuracy test

Installation method
