Flexible Rogowski coil

FRC Flexible Rogowski coil

Item No.: FRC
FRC is a flexible current transducer based on Rogowski principle, particularly suitable for measurement in combination with portable devices.
Description
Description
Introduce

FRC rogowski coils are available in different sizes and can be supplied according to customer’s design, therefore they can be used in all those applications, in which traditional transducers are not fitting due to its size and/or weight. Due to its specific features, flexible rogowski coil is an extremely confortable solution for current measurement and can be used in a number of cases where traditional current transducer is not the adequate solution.


Applications
Measuring devices,lab instrumentation.
Harmonics and transients monitoring.
Very high current monitoring,power quality monitoring.
DC ripple measurement,electric furnace,relay protection.
Features
Suitable to measure currents from A to hundreds of kA.
The absence of magnetic core grants a wide frequency response to be suitable for measurement of harmonic content and transients.
Very useful with large size or awkward shaped conductors or in places with limited access.
Non-intrusive, no power drawn from the main,not damaged by large overloads.
There is no danger from open-circuited secondary.
Technical Parameter



TRANSDUCER
Coil length: from 210 to 420 mm
Inner diameter: from 60 to 125 mm (±10%)
Coil cross section: 6.5±0.2 mm
Fastening: bayonetholder
Material: thermoplastic UL94-V0
Color: coil: black(standard), red, yellow (other color could be customised)
closing unit: black



CONNECTION CABLE
Type: cable  (with 3-wire terminal)
cable + BNC/Oscilloscope Interface
Length: 3000 mm (standard)
(other length could be customised)
Material: Xy23/0.1 丅s/2C+A+B
Color: black



ELECTRICAL CHARACTERISTICS
Output level (RMS): 40mV/1000A @50Hz (Standard)
Accuracy: class 1.0 (coil must be calibrated with amplifier/integrator load impedance)
Linearity (10% to 100% of range): ±0.1% of reading
Frequency range/Bandwidth: approx 10Hz to 10MHz
Phase shift: 90°
Conductor position sensitivity: ±2% Maximum
Inuence of external field: ±2% Maximum



ENVIRONMENTAL CONDITIONS
Operating temperature: from -20℃ to +75℃
Storage temperature: from -30℃ to +75℃ (suggest normal temperature )



Safety
Working voltage(max): 1000Vrms CATIII
600Vrms CATIV
Hipot test 7400Vrms @50/60Hz 1min.



Specification



Model Coil length (mm) Inner diameter (mm) Output level (RMS) Coil color

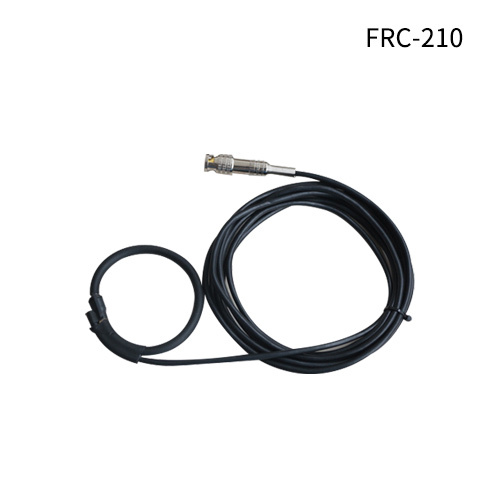

FRC040 210 mm 60mm ±10% 40mV/1000A @50Hz Black, Red, Yellow
FRC040 350 mm 103mm ±10% 40mV/1000A @50Hz Black, Red, Yellow

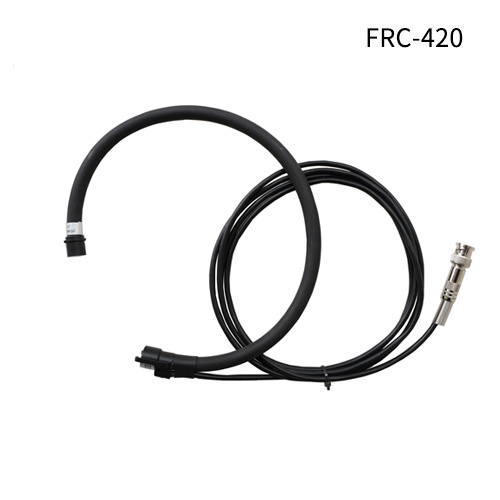

FRC040 420 mm 125mm ±10% 40mV/1000A @50Hz Black, Red, Yellow
FRC080 350 mm 103mm ±10% 80mV/1000A @50Hz Black, Red, Yellow, Blue
FRC080 420 mm 125mm ±10% 80mV/1000A @50Hz Black, Red, Yellow, Blue

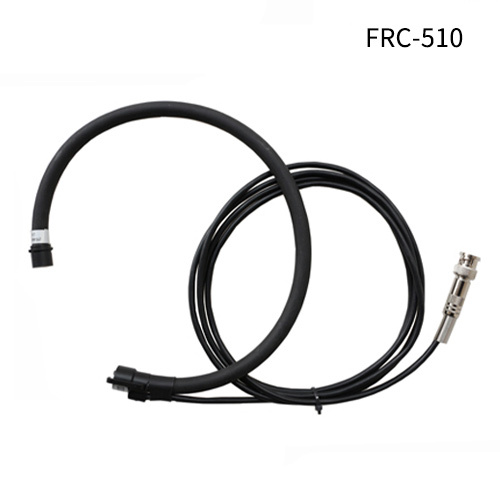

FRC080 510 mm 155mm ±10% 80mV/1000A @50Hz Black, Red, Yellow, Blue
FRC100 420 mm 125mm ±10% 100mV/1000A @50Hz Black, Red, Yellow
FRC100 510 mm 155mm ±10% 100mV/1000A @50Hz Black, Red, Yellow
FRC100 600 mm 180mm ±10% 100mV/1000A @50Hz Black, Red, Yellow
FRC100 800 mm 245mm ±10% 100mV/1000A @50Hz Black, Red, Yellow



Dimensions



circuit diagram



Output praph

Accuracy test
