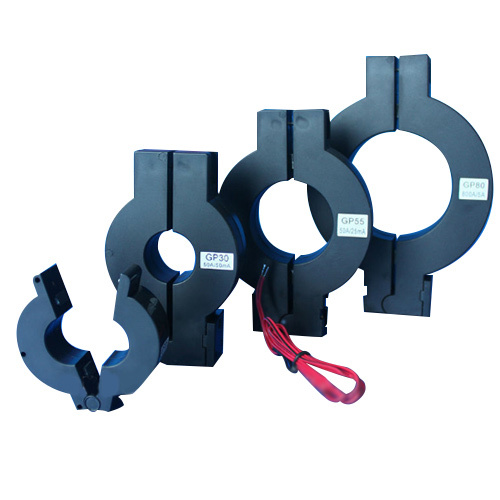

Split Core Current Transformer

GP Type Current Transformer

Item No.: GP
GP series provide precision measurement for energy monitoring applications to sensing power loading equipment without interrupting the lines.
Description
Description
Introduce

GP series provide precision measurement for energy monitoring applications to sensing power loading equipment without interrupting the lines. It has been specifically designed to be easy to open and yet maintain the accuracy required for intelligent meters, quick to fit around cables.


Applications
Split core design, safe, easy to install, portable.
Wide inner window, allowing clamping of big cables or bus-bars.
Wide range of sizes to accommodate all the existing installations.
Wires plugs,Audio plugs,Power plugs and so on five kinds of plugs.
Features
The structure of the self-locking, safe, easy to install, portable.
Wide inner window, allowing clamping of big cables or bus-bars.
Wide range of sizes to accommodate all the existing installations.
Technical Parameter



Electrical Parameter
Primary current 20A~5000A,
Secondly current 50~500 mA or 1A/5A
Measuring range 0.5 ,1.0, 3.0
Application Cables



Specification



Model Dimension(mm) Input Output Class
ø A B C D E
GP-16 16 38.5 14 2 55 18.5 5~100A 0~50mA/0.333V 0.5,1.0,3.0
GP-25 25 57 14 2 75.5 20.5 20~200A 0~100mA/0.333V 0.5,1.0,3.0
GP-30 30 83 45 2 129 28 200~500A 5A 0.5,1.0,3.0
GP-55 55 108 45 2 154 28 150~1000A 5A 0.5,1.0,3.0
GP-80 80 137 45 2 192 28 500~2000A 5A 0.5,1.0,3.0

Please contact us for more models and specifications.



Dimensions

GP

Accuracy test
