Protection Current Transformer

HPT Type protection current transformer

Item No.: HPT
HPT series low-voltage protection current transformers, low-voltage protection current transformers are mainly suitable for relay protection circuits passing through multiple busbars.
Description
Description
Introduce

This product was developed for protection systems that detect short-circuit faults. It has different accuracy classes and accuracy limit factors.
It can be extended to different perforation sizes and is widely used in low voltage distribution protection systems.

Applications
It is used to collect low-voltage overload and short-circuit signals, and is used with protection relays.
The primary measurement range is 200-6300A, and the secondary output is 5A, 1A.
Collect low-voltage overload and short-circuit signals, which can be used in conjunction with the motor protection unit.
Used in places where there is no direct rain or snow, no serious pollution and severe vibration.
Features
Shell is made of flame-retardant, 140 temperature-resistant imported polycarbonate injection molding.
The iron core is made of directional cold rolled silicon steel strip.
The secondary conductor is high-strength electromagnetic enameled wire.
The product structure is novel, beautiful in appearance, easy to install,small in size, light in weight, high in accuracy, and large in capacity
Technical Parameter



Product Parameter
primary current 200-6300A Rated voltage AC0.66kV
secondary current 5A, 1A, 0.1A, 0.05A Ambient temperature -30℃~70℃
Power frequency withstand voltage  3000V/1min 50Hz

Specification

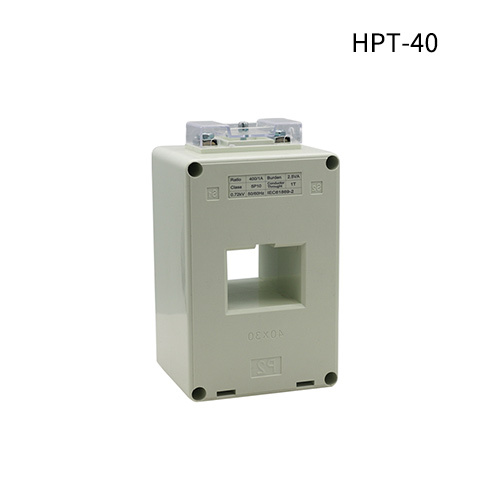

HPT-40
Bus type/mumbers 40X10/1-2
Accurency: 5P/10P 10 15 20
P/S(A) Capacity
150/5A 2.5 - -
200/5A 2.5 - -
250/5A 2.5 - -
300/5A 2.5 2.5 -
400/5A 3.75 2.5 -
500/5A 5 2.5 2.5
600/5A 5 2.5 2.5
750/5A - 5 2.5
800/5A - 5 2.5
100/1A 2.5 - -
120/1A 2.5 - -
150/1A 2.5 - -
200/1A 5 2.5 2.5
250/1A 5 2.5 2.5
300/1A 5 2.5 2.5
400/1A 10 5 5
500/1A 10 5 5
600/1A 15 10 5
750/1A 15 10 10
800/1A 15 10 10

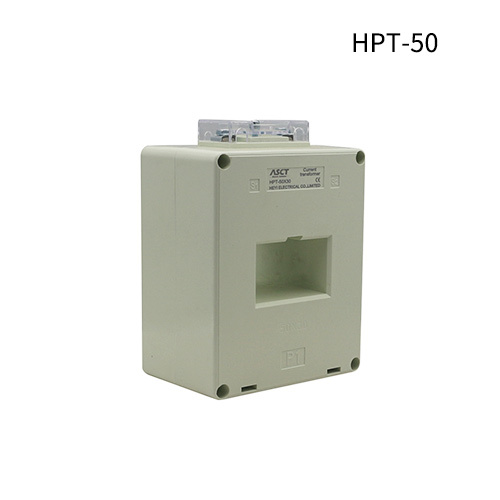

HPT-50
Bus type/mumbers 50X10/1-2
Accurency: 5P/10P 10 15 20
P/S(A) Capacity
150/5A 2.5 - -
200/5A 2.5 - -
250/5A 2.5 - -
300/5A 2.5 2.5 -
400/5A 3.8 2.5 -
500/5A 5 2.5 2.5
600/5A 5 2.5 2.5
750/5A - 5 2.5
800/5A - 5 2.5
100/1A 2.5 - -
120/1A 2.5 - -
150/1A 2.5 - -
200/1A 5 2.5 2.5
250/1A 5 2.5 2.5
300/1A 5 2.5 2.5
400/1A 10 5 5
500/1A 10 5 5
600/1A 15 10 5
750/1A 15 10 10
800/1A 15 10 10

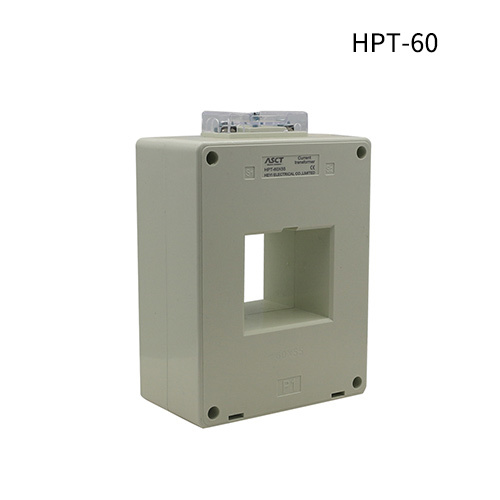

HPT-60
Bus type/mumbers 60X10/1-2
Accurency: 5P/10P 10 15 20
P/S(A) Capacity
200/5A 2.5 2.5 -
250/5A 2.5 2.5 2.5
300/5A 2.5 2.5 2.5
400/5A 5 2.5 2.5
500/5A 5 5 2.5
600/5A 5 5 2.5
750/5A 10 5 5
800/5A 10 5 5
1000/5A 10 7.5 5
1200/5A 15 7.5 5
1500/5A 15 10 5
200/1A 5 2.5 2.5
250/1A 5 2.5 2.5
300/1A 5 2.5 2.5
400/1A 10 5 5
500/1A 10 5 5
600/1A 15 10 5
750/1A 15 10 10
800/1A 15 10 10
1000/1A 15 10 5
1200/1A 20 10 5
1500/1A 25 15 10

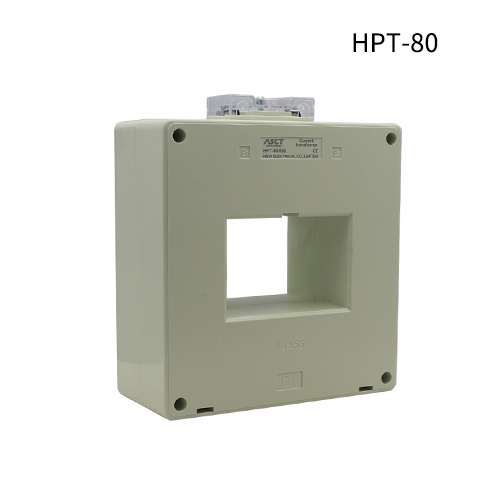

HPT-80
Bus type/mumbers 80X10/1-2
Accurency: 5P/10P 10 15 20
P/S(A) Capacity
300/5A 2.5 - -
400/5A 5 2.5 2.5
500/5A 5 5 2.5
600/5A 5 5 2.5
750/5A 10 5 5
800/5A 10 5 5
1000/5A 15 7.5 5
1200/5A 15 7.5 5
1500/5A 15 10 5
2000/5A 15 10 5
300/1A 5 - -
400/1A 10 5 -
500/1A 10 5 5
600/1A 15 10 5
750/1A 15 10 5
800/1A 15 10 5
1000/1A 20 10 5
1200/1A 20 10 5
1500/1A 20 10 5
2000/1A 20 10 5

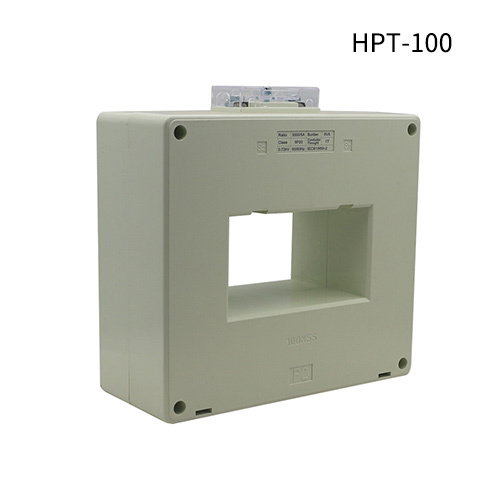

HPT-100
Bus type/mumbers 100X10/1-2
Accurency: 5P/10P 10 15 20
P/S(A) Capacity
400/5A 5 2.5 2.5
500/5A 5 5 2.5
600/5A 10 5 2.5
750/5A 10 5 5
800/5A 10 5 5
1000/5A 10 7.5 5
1200/5A 15 7.5 5
1500/5A 15 10 5
2000/5A 15 10 5
2500/5A 15 10 5
3000/5A 15 10 5
300/1A 5 5 2.5
400/1A 10 5 5
500/1A 10 10 5
600/1A 15 10 7.5
750/1A 15 15 10
800/1A 15 15 10
1000/1A 20 15 10
1200/1A 20 15 10
1500/1A 25 15 10
2000/1A 30 20 15
2500/1A 20 10 7.5
3000/1A 20 10 7.5



HPT-135
Bus type/mumbers 130X10/2-3
Accurency: 5P/10P 10 15 20
P/S(A) Capacity
750/5A 10 5 5
800/5A 10 5 5
1000/5A 10 7.5 5
1200/5A 15 7.5 5
1500/5A 15 10 5
2000/5A 15 10 5
2500/5A 15 10 5
3000/5A 15 10 5
4000/5A 15 10 5
5000/5A 15 10 5
750/1A 20 15 10
800/1A 20 15 10
1000/1A 20 20 10
1200/1A 30 25 15
1500/1A 30 15 10
2000/1A 30 20 15
2500/1A 30 25 20
3000/1A 30 15 7.5
4000/1A 30 20 10
5000/1A 30 25 10





Dimensions

HPT-40 HPT-50
HPT-60 HPT-80
HPT-100 HPT-135

Accuracy test

Installation method
