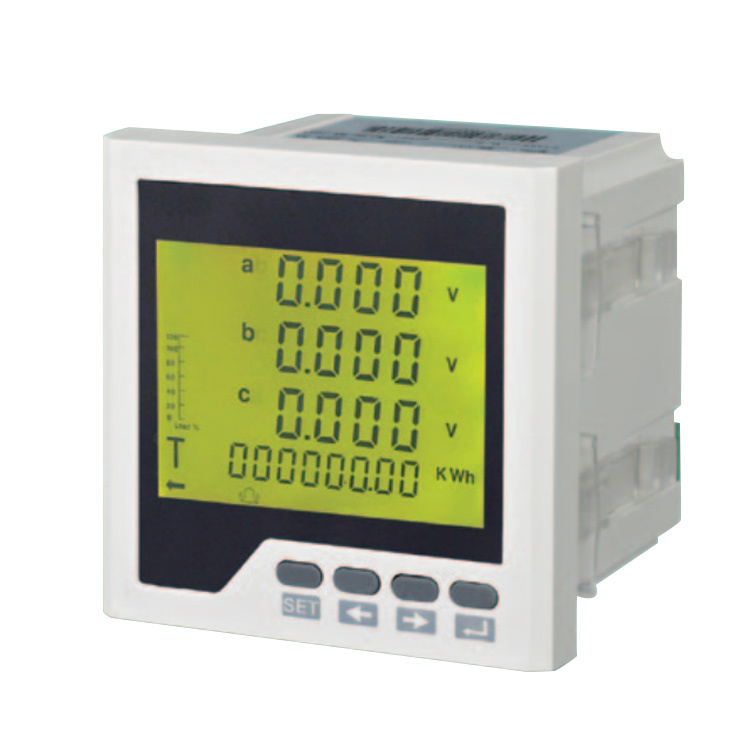

HY-3D type three phase LCD multifunction meter

Item No.: 00363
Multifunction Power Meter can accurately measure the three-phase power distribution system for all common power parameters.
Description
Description
Introduce

Multifunction Power Meter can accurately measure the three-phase power distribution system for all common power parameters:

three-phase voltage, phase current, active power, reactive power, power factor, line frequency, active power, reactive power, and with communication interface and pulse output functions.

Features:
Using MODBUS-RTU communication protocol, to achieve LED display and remote RS-485 digital communications.
Has easy installation, wiring is simple, easy maintenance, small quantities, field programmable set of input parameters and other characteristics.
Can be completed with the industry PLC, industrial computer group network communication.
Technical Parameter


Accuracy of measurement Voltage level 0.5, current level 0.5, active power 0.5,reactive power level 0.5, power factor 0.5, frequency
±0.2Hz,active energy level 0.5/0.2 , reactive energy level 1/2
Singal input Connection mode of single or three phase four wire, three phase three line
Rated current of AC 1A, AC 5A
Over load voltage 1.2 times ( Continued ), 2 times / second ( instantaneous )
Over load current 1.2 times ( Continued ), 10 times / 5seconds ( instantaneous )
Power consumption voltage <1VA/phase, current: <.0.4VA/phase
Impedance voltage: >300KΩ current: <20mΩ
The frequency 45~65Hz
Rated voltage of AC57.7 V,AC100V ,AC220V ,AC380V
Auxiliary power supply Working range of AC/DC 80V~270V
Power consumption <4VA
Function module Communication interface 1 way RS-485 communication, Modbus-RTU protocol
Baud rate: 1200~9600bps, the default 2400bps
Switch input support 4 stem node input
The switch output support 3 relay output, capacity: AC 250V/5A, DC 30V/5A
Transmission output support 3analog output: 0/4~20mA or 0~5/10V
Environment Working temperature: -10°C ~+55°C
Storage temperature: -25°C ~+70°C
Relative humidity is less than 93%, no corrosive gas
Elevation≤2500m
safety Insulation resistance >100MΩ
AC withstand voltage AC 2KV
Electromagnetic compatibility ESD level 4
Electrical fast transient burst level 4

Selcction of Specification
Model  Measurment Extended Function Display Dimension
3-phase electric parameters multi-rate harmonic fire monitoring Switch input Switch output Transmission output Communication interface LED LCD
HY-3D2 4 4 4 2 120*120
HY-3D2Y 4 4 4 2
HY-3FD2Y 4 4 4 2
HY-3HD2Y 4 4 4 2
HY-3LD2 4 2
HY-3LD2Y 4 2
HY-3FHD2Y 4 4 4 2
HY-3D3 4 4 4 2 96*96
HY-3D3Y 4 4 4 2
HY-3FD3Y 4 4 4 2
HY-3HD3Y 4 4 4 2
HY-3LD3 4 2
HY-3LD3Y 4 2
HY-FHD3Y 4 4 4 2
HY-3D7 1 80*80
HY-3D7Y 1
HY-3D6 1 72*72
HY-3D6Y 1
HY-3D8 1 48*48


Dimensions



Mechanical dimension(for reference only)
