High Voltage Current Transformer

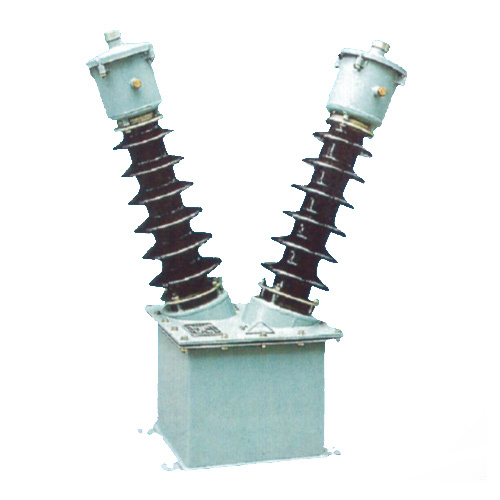

JD2-35W voltage transformer

Item No.: JD2-35W
This type of transformer is suitable for the rated frequency of 50Hz ,35kV power system for voltage ,energy measurment and relay protection.
Description
Description
Introduce

This type of transformer is suitable for the rated frequency of 50Hz ,35kV power system for voltage ,energy measurment and relay protection.

This product is suitable for outdoor or indoor use,place of use:JD-35W altitude 1000m below JD2-35GYW altitude below 3000m,ambient temperature changes from -30°C~40°C,technical parameters as follow.

Technical Parameter



Type Rated primary voltage Rated secondary voltage Priamry and secondary windings rated output
0.2class 0.5class 3Pclass Limit output
JD2-35W 35 0.1 100 150 500 1000
JD2-35GYW



Type Rated insulation level Specific creepage distance oil weight  Total weight
Highest voltage for equipment Power frequency withstand voltage Impulse withstand voltage
JD2-35W 40.5 95 200 2 33 120
JD2-35GYW 2.5



Dimensions



JD2-35W

Accuracy test

24Hs online service
365Ds NON-Stop Production 20Ys Professional Manufacturers
Professional designer and manufacturer of current transformer,
cooperated with Siemens ,schneider Fuji electrical softbank LG samdsung.
