High Voltage Current Transformer

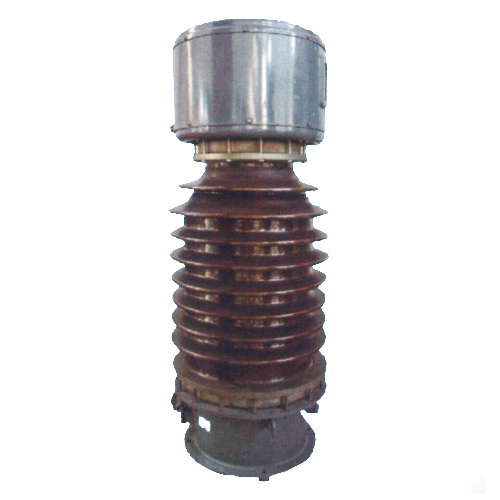

JDC5-66 voltage transformer

Item No.: JDC5-66
This type of transformer is a cascade of single-phase three-winding insulation.Outdoor device,suitable for frequecy 50Hz .Voltage 66KV neutal point non-effectively grounded system for.
Description
Description
Introduce

This type of transformer is a cascade of single-phase three-winding insulation.Outdoor device,suitable for frequecy 50Hz .Voltage 66KV neutal point non-effectively grounded system for.

Energy measurment for lighting protection .Good excitation characteristics .Reliable operation.Easy to maintain.Top with metal expander.Sealed structure.

Specification



Type Applicable Specific creepage distance Weight Mounting dimension Height of product
Oil weight Total weight Pitch Hole number hole dia
JDC5-66 Altitude up to 1000m 1.8,2.5,3.1 70 430 337*337 4-ø18 1470
JDC5-66W1 Altitude up to 1000m polluted areas
JDC5-66TH Altitude up to 1000m and humid areas
JDC5-66GY Altitude up to 2000m 90 180 1700



Type Rated voltage Insulation level
Primary winding Secondary winding Residual voltage winding Equipment highest voltage/frequency /impact
JDC5-66 66000√3 100√3 100√3 72.5/140/325
JDC5-66W1
JDC5-66TH
JDC5-66GY



Type Primary and secondary windings rated output Residual voltage winding Secondary winding to limit output
0.2class 0.5class 3Pclass Rated output Accuracy class
JDC5-66 150 250 300 100 3P 2000
JDC5-66W1
JDC5-66TH
JDC5-66GY

Dimensions



JDC5-66

Accuracy test

24Hs online service
365Ds NON-Stop Production 20Ys Professional Manufacturers
Professional designer and manufacturer of current transformer,
cooperated with Siemens ,schneider Fuji electrical softbank LG samdsung.
