High Voltage Current Transformer

JDZ-10 3 6 10(A ,B) voltage transformer

Item No.: JDZ-10 3 6 10(A ,B)
For the rated frequency of 50Hz-60Hz .Voltage 3,6,10kV and below the power system voltage.Energy measurment and relay protection .
Description
Description
Introduce

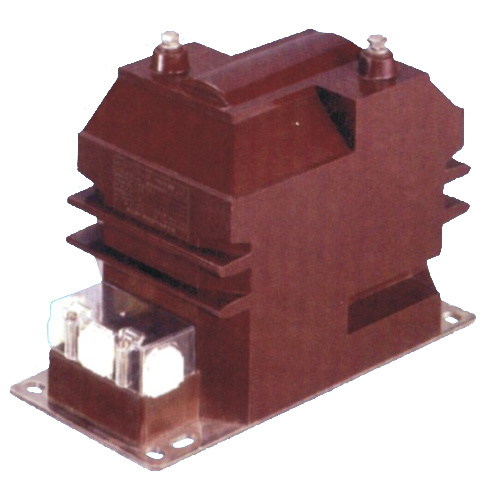

Voltage transformer of this type epoxy resin cast fully insulated fully enclosed structure.

For the rated frequency of 50Hz-60Hz .Voltage 3,6,10kV and below the power system voltage.Energy measurment and relay protection .

Small size,light weight,can be installed in any direction,the product meets the GB1207.

Features
This type of transformer is epoxy resin cast of the pillar structure,and shield with antitheft function.
Using high-quailty steel.And strict heat treatment.Core in the primary winding and secondary winding epoxy resin cast molding,secondary outlet terminal installed at the outlet terminal box,terminal box on the three direction can lead to secondary wiring.
Technical Parameter



TRANSDUCER
Load power factor 0.8(lag)
Pollution Class Class II
Rated secondary current 5A
Product standard GB1207



Specification



Type Rated voltage ratio Accuracy class and accuracy class Rated output limit output Reted insulating level Remark
0.2 0.5 1
JDZ10-3A 3/0.1 0.2,0.5 15 30 60 150 3.6/25/40 With RZL
JDZ10-6A 6/0.1 7.2/30/60
JDZ10-10A 10/0.1 12/45/75
JDZ10-3B 3/0.1 0.2/0.2 , 0.2/0.5 25 50 90 300 3.6/25/40
JDZ10-6B 6/0.1 7.2/30/60
JZ10-10B 10/0.1 12/45/75

Dimensions



JDZ-10 3 6 10A



JDZ-10 3 6 10B

Accuracy test

24Hs online service
365Ds NON-Stop Production 20Ys Professional Manufacturers
Professional designer and manufacturer of current transformer,
cooperated with Siemens ,schneider Fuji electrical softbank LG samdsung.
