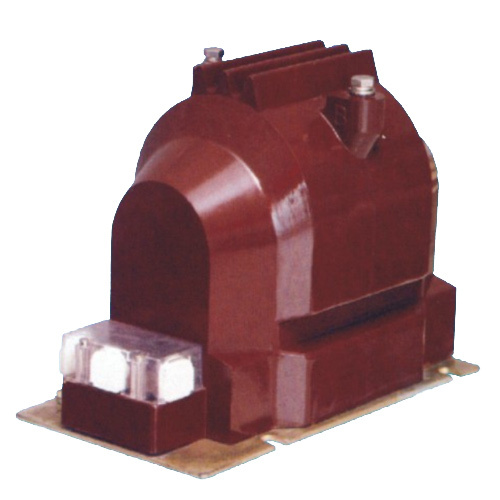

Voltage transformer of this type epoxy resin cast fully insulated fully enclosed structure.
For the rated frequency of 50Hz-60Hz .Voltage 3,6,10kV and below the power system voltage.Energy measurment and relay protection .
TRANSDUCER | |
Load power factor | 0.8(lag) |
Pollution Class | Class II |
Product standard | GB1207 |
Specification
Type | Rated frequency | Rated voltage ratio | Accuracy class and accuracy class | Rated output | limit output | Reted insulating level | Remark |
JDZ11-3A | 50,60 | 3/0.1 ,3/0.1/0.1 | 0.2 , 0.5 , 1 , 0.2/0.2 , 0.2/0.5 | 30 , 80 ,150 ,20/20 ,20/30 | 400 | 3.6/25/40 | With UNZ 10 |
JDZ11-6A | 6/0.1 ,3/0.1/0.1 | 7.2/30/60 | |||||
JDZ11-10A | 10/0.1 ,3/0.1/0.1 | 12/45/75 | |||||
JDZX11-3G | 3/√3/0.1/√3/0.1/3 | 0.2/6P ,0.5/6P ,1/6P | 20/100 , 40/100 , 50/100 | 300 | 3.6/25/40 | ||
JDZX11-6G | 6/√3/0.1/√3/0.1/3 | 7.2/30/60 | |||||
JDZX11-10G | 10/√3/0.1/√3/0.1/3 | 12/42/75 | |||||
10/√3/0.1/√3/0.1/√3/0.1/3 | 0.2/0.5/6P | 20/40/100 |
