High Voltage Current Transformer

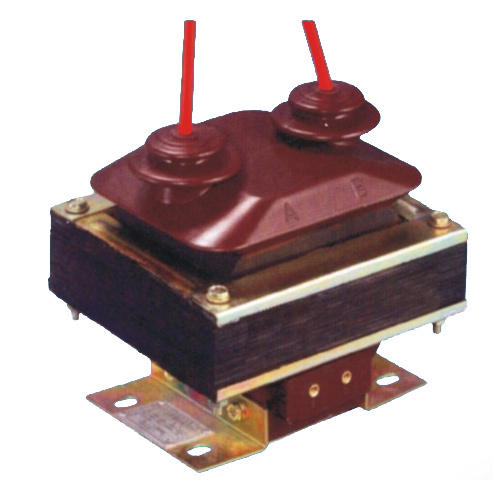

JDZ20-6 10Q voltage transformer

Item No.: JDZ20-6 10Q
Rated voltage of 10kV and below outdoor vacuum circuit breaker ZW8 for operating power and voltage measurment.
Description
Description
Introduce

The voltage transformer of this type epoxy resin cast of a semi-enclosed products.For the rated frequency is 50Hz .

Rated voltage of 10kV and below outdoor vacuum circuit breaker ZW8 for operating power and voltage measurment.

Features
This type of transformer is epoxy resin semi-closed full insulation products .Core volts quailty cold-rolled silicon steel sheet piled.Transformer insulation resin composition of the ring gas.
The small size and light weight .installation accounts for only a limited space .
All windings are fully cast in epoxy resin with excellent insulating properties Impact resistance and mechanical stress.
Winding and can protect from moisture.The primary winding leads to the terminals Aand B,secondary winding lead wire terminal marked as a,b,a clear note in the casting body into ,The primary winding outlets silicone rubber insulated wire leads,High dielectric strength,and easy to wire.
Technical Parameter



TRANSDUCER
Rated insulation level 12/42/75kV
Load power factor 0.8(lag)
Pollution Class
Class II
Product standard GB1207



Specification



Type Rated voltage ratio Rated output Limit output Reted insulation level
0.2 0.5 1 3
JDZ20-6Q 6/0.1 20 50 80 200 400 7.2/30/60
JDZ20-10Q 10/0.1 30 80 120 300 500 12/42/75

Dimensions



JDZ20-6 10Q



Accuracy test

24Hs online service
365Ds NON-Stop Production 20Ys Professional Manufacturers
Professional designer and manufacturer of current transformer,
cooperated with Siemens ,schneider Fuji electrical softbank LG samdsung.
Tel:13968747975
Add:(Zhejiang Lierde Relay Co., Ltd.) Xinguang Ind. Zone, Liushi Town, Wenzhou, Zhejiang, China
