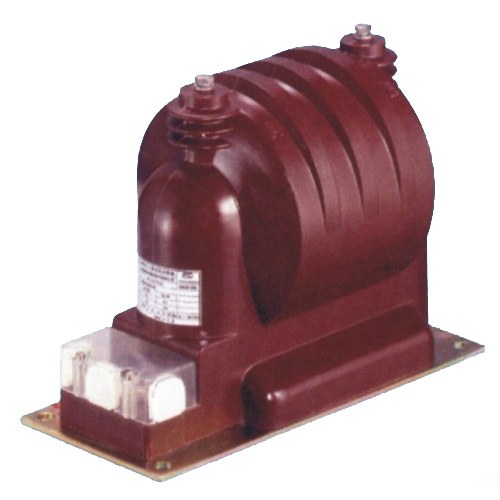

JDZX9-3,6,10 g-series epoxy resin cast fully insulated fully enclosed indoor installations voltage transformer .
Applicable to 50 Hz ,10kV and below the neutral point non-effectively grounded system as voltage,power ,measuring and protecting purposes.
TRANSDUCER | |
Load power factor | 0.8(lag) |
Pollution Class | Class II |
Product standard | GB1207 |
Specification
Type | Rated frequency | Rated voltage ratio | Accuracy class and accuracy class | Rated output | limit output | Reted insulating level | Remark |
JDZ9-3 | 50,60 | 3/0.1 | 0.2 | 15 | 200 | 3.6/25/40 | With VKV |
0.5 | 30 | ||||||
1 | 50 | ||||||
3 | 100 | ||||||
JDZ9-6 | 50,60 | 6/0.1 | 0.2 | 20 | 400 | 7.2/30/60 | With VKV |
0.5 | 50 | ||||||
1 | 80 | ||||||
3 | 200 | ||||||
JDZ9-10 | 50,60 | 10/0.1 | 0.2 | 30 | 500 | 12/42/75 | With VKV |
0.5 | 80 | ||||||
1 | 200 | ||||||
3 | 240 | ||||||
JDZ9-3G | 50,60 | 3/√3/0.1/√3/0.1/3 ,6/√3/0.1/√3/0.1/3 ,10/√3/0.1/√3/0.1/3 ,10/√3/0.1/√3/0.1/√3/0.1/0.3 | 0.5/6P | 25/100 | 400 | 3.6/25/40 | |
JDZ9-6G | 7.2/30/60 | ||||||
JDZ9-10G | 12/42/75 | ||||||
0.2/0.5/6P | 20/25/50 |
