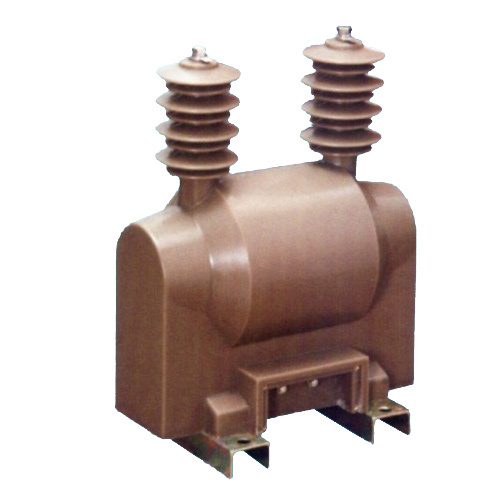

JDZ(XF)W-6 10 voltage transformer
JDZ(XF)W-6 10 voltage transformer JDZ(XF)W-6 10 voltage transformer JDZ(XF)W-6 10 voltage transformer
  • JDZ(XF)W-6 10 voltage transformer

JDZ(XF)W-6 10 voltage transformer

Item No.: JDZ(XF)W-6 10
Apply to outdoor substation in rural areas can also be used for industrial,enterprise small change,power distribution.
Add to Inquiry
Description
Description
Introduce

This is type of voltage transformer for outdoor epoxy resin(Switzerland,Ciba CW5837)casting a fully enclosed structure.

Applies to AC 50Hz ,Rated voltage of 10kV and below  the power system for voltage and power measurment and relay protection .

Apply to outdoor substation in rural areas can also be used for industrial,enterprise small change,power distribution.

Features
The voltage transformer of this type,the pillar structure ,fully enclosed ,small size ,quailty ,suitable for any location,installed in any direction.
The second outlet side of the terminal protection cover,below the outlet hole,and anti-theft measures.Safe and reliable ,there are four mounting holes on the channel.
Technical Parameter



TRANSDUCER
Load power factor 0.8(lag)
Pollution Class
 Class II
Product standard GB1207



Specification



Type Rated voltage ratio Accuracy class Rated output limit output Reted insulating level
JDZW-6 6/0.1 0.2,0.5 20,40 400 7.2/30/60
JDZW-10 10/0.1 0.2,0.5 30,80 12/42/75
JDZFW-6 6/0.1/0.1 0.2/0.2 , 0.2/0.5 , 0.5/0.5 15/15 , 15/20 , 20/20 200 7.2/30/60
JDZF-10 10/0.1/0.1 0.2/0.2 , 0.2/0.5 , 0.5/0.5 25/25 , 30/50 , 50/50 12/42/75
JDZXW-6 6/√3/0.1/√3/0.1/3 0.2/6P , 0.5/6P 30/100 , 40/100 300 7.2/30/60
JDZXW-10 10/√3/0.1/√3/0.1/3 0.2/6P , 0.5/6P 25/100 , 50/100 12/42/75
JDZXFW-6 6/√3/0.1/√3/0.1/√3/0.1/3 0.2/0.2/6P , 0.2/0.5/6P , 0.5/0.5/6P 15/15/100 , 15/20/100 , 30/30/100 200 7.2/30/60
JDZXFW-10 10/√3/0.1/√3/0.1/√3/0.1/3 0.2/0.2/6P , 0.2/0.5/6P , 0.5/0.5/6P 20/20/100 , 20/30/100 , 30/30/100 12/42/75

Dimensions



JDZ(XF)W-6 10



Accuracy test
