High Voltage Current Transformer

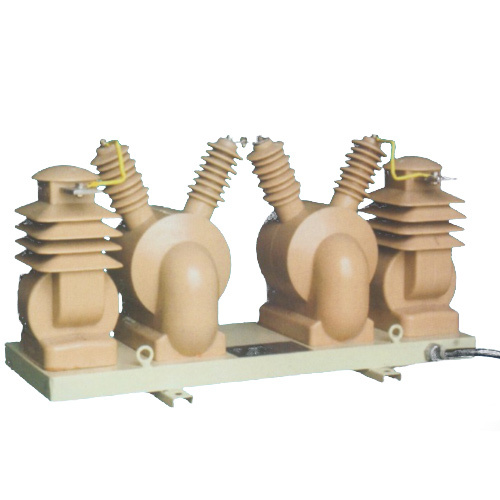

JLSZ8-10GY voltage transformer

Item No.: JLSZ8-10GY
Apply to rural outdoor substation. Also be used for the small change of the industrial enterprises, power distribution.This product can replace the JLS-10 oil-immersed power metering box.
Description
Description
Introduce

This type of voltage, current combined transformer (also known as energy metering box) for the exchange of 50Hz, rated voltage of 10kV three-phase power lines for active and reactive energy metering. Apply to rural outdoor substation. Also be used for the small change of the industrial enterprises, power distribution.This product can replace the JLS-10 oil-immersed power metering box.

Features
The combined transformer for outdoor epoxy casting, all closed, the pillar structure.
Outdoor epoxy casting,the product has the arc resistance, UV resistance, aging resistance, long life, maintenance-free characteristics.
This product consists of two single-phase full insulation voltage transformer formed a "V"-shaped connection, two current transformers are connected in series A and C phase. And current transformer secondary winding with a tap can be obtained with different current ratio.
Secondary outlet leads through a metal hose, wiring, safe and reliable and can realize the anti-theft measures. There are four mounting holes for installation in the base channel.
Technical Parameter



TRANSDUCER
Rated voltage ratio 10 000/100 (V)
Rated secondary output 20VA 0.5 0.2 50VA;
Load power factor COS
0.8 (lag)
Ambient temperature -30 °℃ -40 °C
Product standard GB1208/GB1207/GB17201
Safety factor
FS<10
Altitude
<4000m
This combination transformer by the combination of single-phase voltage transformer bearing in mind that single-phase current transformer into a three-phase.



Specification



Rated primary current Rated short time thermal current (kA) (rms) Rated Dynamic current (kA)(peak) Rated secondary output Reted insulating level
0.2S 0.5
5-10 1 2.5 10 15 12/42/75
10-20 1.5 3.75
15-30 2.4 6
20-40 3 7.5
30-60 4.5 11
40-75 8 20
50-100 9 22.5
75-150 12 30
100-200 16 40
150-300 24 60
200-400 32 80
300-600 60 100
400-800 80 100
500-1000 80 100

Dimensions



JLSZ8-10GY



Combined transformer connection drawing



Accuracy test
