High Voltage Current Transformer

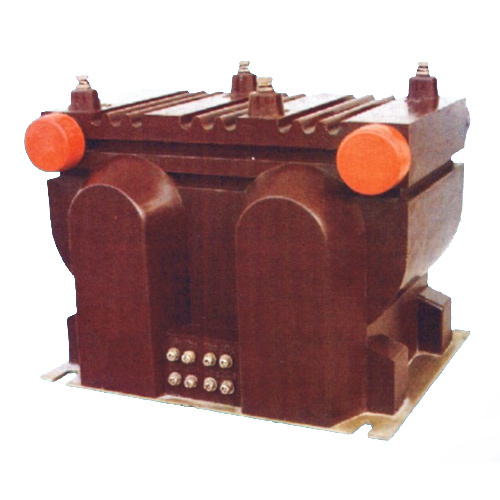

JSZV1-6 10R voltage transformer

Item No.: JSZV1-6 10R
For the rated frequency of 50Hz-60Hz .Voltage 3,6,10kV and below the power system voltage.Energy measurment and relay protection .
Description
Description
Introduce

Voltage transformer of this type epoxy resin cast fully insulated fully enclosed structure.

The biggest characteristic of this type of transformer fuse protection only increase.Thus the security of the transformer is increased.If you installed in the switch cabinet .No longer need to reprovision the fuse.Save a lot of space.The cost of the switvhgear down.And fuse replacement .Directly mount the transformer internal.The fuse current and short-circuit current of the transformer to match the effective  protection of the transformer grid failure is not burned.

Features
Voltage transformer with a fuse to protect the primary winding of the newly developed V-shaped connection composed of a three-phase voltage transformer ,two single-phase voltage transformer is used alone,is a fully enclosed structure.
The core quailty cold-rolled silicon steel sheet around made type .And by the strict heat treatment.Advanced vacuum casting process with epoxy resin casting.
Transformer resistance filthy,resistant to moisture temperature.Users need this type of transformer can be a qualifying terminal single desktop outlet that is,Type A,three-phase form of wit .in the internal wiring.B-type .User-friendly wiring.
Technical Parameter



TRANSDUCER
Load power factor 0.8(lag)
Pollution Class Class II
Product standard GB1207



Specification



Type Rated voltage ratio Rated output limit output Reted insulating level Remark
0.2 0.5 1 0.2/0.2,0.2/0.5 0.5/0.5
JSZV1-6R 6/0.1 20 50 80     800 7.2/30/60 With 200V power supply,thepower capacity of 800VA
6/0.1/0.1       20/20
JSZV1-10R 10/0.1 30 80 150     12/42/75
10/0.1/0.1       20/20

Dimensions



JSZV1-6 10R



Accuracy test

24Hs online service
365Ds NON-Stop Production 20Ys Professional Manufacturers
Professional designer and manufacturer of current transformer,
cooperated with Siemens ,schneider Fuji electrical softbank LG samdsung.
Tel:13968747975
Add:(Zhejiang Lierde Relay Co., Ltd.) Xinguang Ind. Zone, Liushi Town, Wenzhou, Zhejiang, China
