Home > Current Transformer > High Voltage Current Tran...

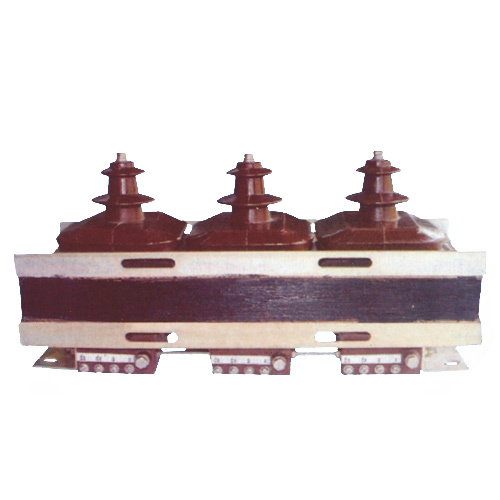

JSZW3-3 6 10(A B) voltage transformer
JSZW3-3 6 10(A B) voltage transformer JSZW3-3 6 10(A B) voltage transformer JSZW3-3 6 10(A B) voltage transformer
  • JSZW3-3 6 10(A B) voltage transformer

JSZW3-3 6 10(A B) voltage transformer

Item No.: JSZW3-3 6 10(A B)
3/6/10 kv neutral point non-effectly grounded power system voltage for rated voltage of 50Hz，energy measurment and relay protection.
Add to Inquiry
Description
Description
Introduce

JSZW3-3 6 10(A B）voltage transformer for indoor epoxy casting semi-enclosed structure ,3/6/10 kv neutral point non-effectly grounded power system voltage for rated voltage of 50Hz，energy measurment and relay protection.

Depending on the installation，the product is divided into A andB type.

Technical Parameter



TRANSDUCER
Rated insulation level 3kV:3.6/25/40kV   6kV:7.2/30/60kV   10kV:12/42/75kV
Load power factor 0.8(lag)
Product standard GB1207



Specification



Type Rated voltage ratio Rated output limit output Reted insulating level
0.2 0.5 1 3 6P
JSZW3-3 3/√3/0.1/√3/0.1/3 60 90 150 300 75 600 3.6/25/40
JSZW3-6 6/√3/0.1/√3/0.1/3 75 150 240 600 100 1000 7.2/30/60
JSZW3-10 10/√3/0.1/√3/0.1/3 12/42/75

Dimensions



JSZW3-3/6A



JSZW3-10A



JSZW3-3/6B



JSZW3-10B

Accuracy test
