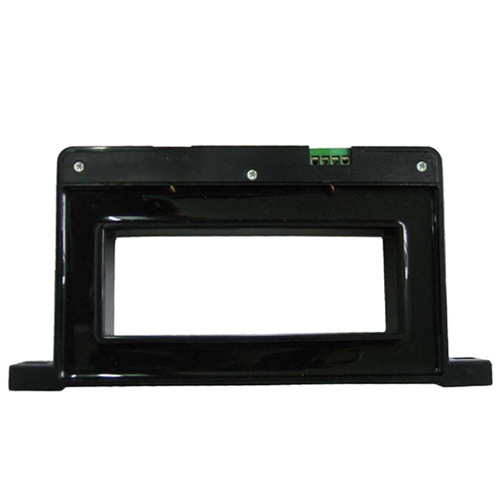

K140 Type Current Sensor
K140 Type Current Sensor K140 Type Current Sensor K140 Type Current Sensor
  • K140 Type Current Sensor

K140 Type Current Sensor

Item No.: K140
K140 series hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit.
Add to Inquiry
Description
Description
Introduce

K140 series hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Applications
Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
Directions for use
When the current will be measured goes through a sensor, the current will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)
Custom design in the different rated input current and the output current are available.
Technical Parameter



Type K140-1000A K140-3000A K140-5000A K140-8000A K140-10000A Unit
Rated current(Ipn) ±1000 ±3000 ±5000 ±8000 ±10000 A
Measure range(Ip) 0—±2000 0—±4500 0—±7500 0—±10000 0—±12000 A
Rated output @Ip=±Ipn ±4±1% V
Supply voltage ±12，±15 V
Power Consumption <25 mA
Offset voltage @Ip=0 ±20 mV
Magnetic offset @Ip=±Ipn-0 ±30 mV
Offset drift @ -40～+85℃ ≤±0.5 mV/℃
Output drift @ -40～+85℃ ≤±0.5 mV/℃
Linearity @Ip=0-±Ipn ≤1 %FS
Response time @50A/μS, 10%-90% ≤10 μs
Galvanic isolation @ 50HZ,AC,1min 6 KV

Dimensions



Mechanical dimension(for reference only) Note

1. All dimensions are in mm.

2. General tolerance ±1mm.

3. Elucidation:  1:+12V  2:OV  3:V0UT  4:NC

General date Value Unit
Operating temperature(TA) -40 to +85 ℃
Storage temperature(TS) -40 to +125 ℃
Mass(approx) (M) 1250 g

Accuracy test

Effects of impulse noise
( Output voltage )

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000

24Hs online service
365Ds NON-Stop Production 20Ys Professional Manufacturers
Professional designer and manufacturer of current transformer,
cooperated with Siemens ,schneider Fuji electrical softbank LG samdsung.
