Home > Current Sensor > Open Loop Hall Effect Cur...

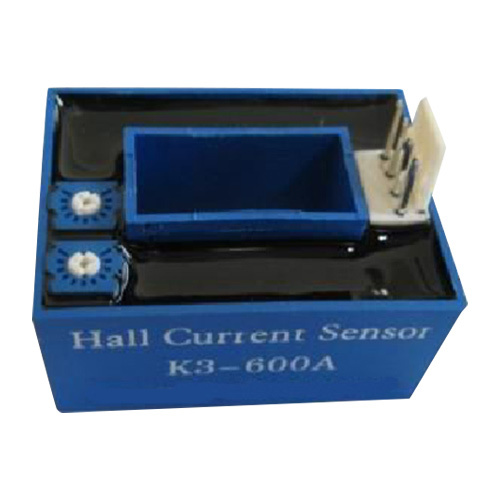

K3 Type Current Sensor
K3 Type Current Sensor K3 Type Current Sensor K3 Type Current Sensor
  • K3 Type Current Sensor

K3 Type Current Sensor

Item No.: K3
K3 series hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit.
Add to Inquiry
Description
Description
Introduce

K3 series hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Applications
Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
Directions for use
When the current will be measured goes through a sensor, the current will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)
Custom design in the different rated input current and the output current are available.
Technical Parameter



Type K3-50A K3-100A K3-200A K3-300A K3-400A K3-500A K3-600A Unit
Rated current(Ipn) ±50 ±100 ±200 ±300 ±400 ±500 ±600 A
Measure range(Ip) ±100 ±200 ±400 ±600 ±800 ±900 ±900 A
Rated output @Ip=±Ipn ±4±1% V
Supply voltage ±12，±15 V
Power Consumption <25 mA
Offset voltage @Ip=0 ±25 mV
Magnetic offset @Ip=±Ipn-0 ±30 mV
Offset drift @ -40～+85℃ ≤±1 mV/℃
Output drift @ -40～+85℃ ≤±1 mV/℃
Linearity @Ip=0-±Ipn ≤1 %FS
Response time @50A/μS, 10%-90% ≤5 μs
Galvanic isolation @ 50HZ,AC,1min 2.5 KV
Wire length 650～750 mm



Dimensions



Mechanical dimension(for reference only) Remark

1. All dimensions are in mm.

2. General tolerance ±1mm.

3. Elucidation:  1:+15V  2:–15V  3:V0UT  4:0V

General date Value Unit
Operating temperature(TA) -40 to +85 ℃
Storage temperature(TS) -40 to +125 ℃
Mass(approx) (M) K3：55，K3R:80 g

Accuracy test

Pulse current signal response characteristic Effects of impulse noise

( Input signal )

( Output signal )

 ( Output voltage )

Input current-Output Voltage characteristic

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000
