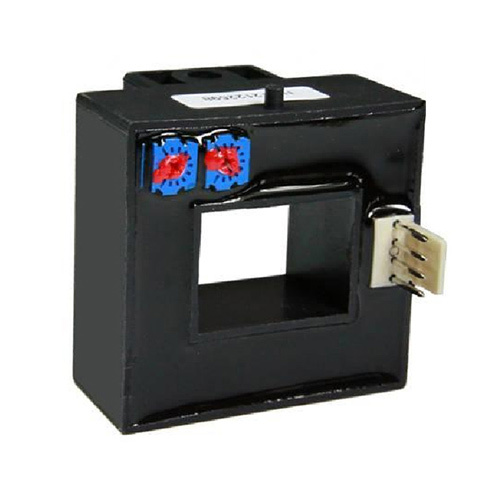

K3X series hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.
Type | K3X-50A | K3X-100A | K3X-200A | K3X-300A | K3X-400A | K3X-500A | K3X-600A | Unit |
Rated current(Ipn) | ±50 | ±100 | ±200 | ±300 | ±400 | ±500 | ±600 | A |
Measure range(Ip) | ±100 | ±200 | ±400 | ±600 | ±800 | ±900 | ±900 | A |
Rated output | @Ip=±Ipn ±4±1% | V | ||||||
Supply voltage | ±12,±15 | V | ||||||
Power Consumption | <25 | mA | ||||||
Offset voltage | @Ip=0 ±25 | mV | ||||||
Magnetic offset | @Ip=±Ipn-0 ±30 | mV | ||||||
Offset drift | @ -40~+85℃ ≤±1 | mV/℃ | ||||||
Output drift | @ -40~+85℃ ≤±1 | mV/℃ | ||||||
Linearity | @Ip=0-±Ipn ≤1 | %FS | ||||||
Response time | @50A/μS, 10%-90% ≤5 | μs | ||||||
Galvanic isolation | @ 50HZ,AC,1min 2.5 | KV |
Dimensions
Mechanical dimension(for reference only) | Note |
Remark:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+12V 2:OV 3:V0UT 4:NC
General date | Value | Unit |
Operating temperature(TA) | -40 to +85 | ℃ |
Storage temperature(TS) | -40 to +125 | ℃ |
Mass(approx) (M) | 77 | g |
Standards
UL94-V0.
EN60947-1:2004
IEC60950-1:2001
EN50178:1998
SJ 20790-2000
