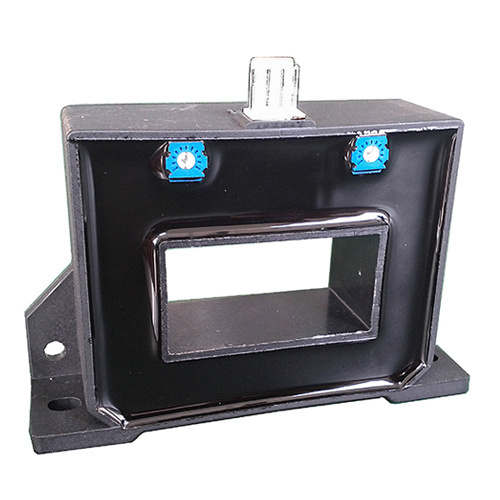

Open Loop Hall Effect Current Sensor

K4N Type Current Sensor

Item No.: K4N
K4N series hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit.
Description
Description
Introduce

K4N series hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Applications
Variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
Directions for use
When the current will be measured goes through a Sensor, the voltage will be measured at the output end.(Note: The false wiring may result in the damage of the Sensor)
The output amplitude of the Sensor can be adjusted according to users’ requirements.
Custom design in the different rated input current and the output voltage are Sensor.
Technical Parameter



Type K4N-200A K4N-400A K4N-600A K4N-800A K4N-1000A K4N-1500A Unit
Rated current(Ipn) ±200 ±400 ±600 ±800 ±1000 ±1500 A
Measure range(Ip) ±400 ±800 ±1200 ±1600 ±2000 ±2000 A
Rated output @Ip=±Ipn ±4±1% V
Supply voltage ±12,±15 V
Power Consumption <25 mA
Offset voltage @Ip=0 ±25 mV
Magnetic offset @Ip=±Ipn-0 ±30 mV
Offset drift @ -40~+85℃ ≤±1 mV/℃
Output drift @ -40~+85℃ ≤±1 mV/℃
Linearity @Ip=0-±Ipn ≤1 %FS
Response time @50A/μS, 10%-90% ≤5 μs
Galvanic isolation @ 50HZ,AC,1min 5 KV



Dimensions



Mechanical dimension(for reference only) Remark

1. All dimensions are in mm.

2. General tolerance ±1mm.

3. Elucidation:  1:+12V  2:OV  3:V0UT  4:NC

General date Value Unit
Operating temperature(TA) -40 to +85
Storage temperature(TS) -40 to +125
Mass(approx) (M) 260 g

Accuracy test

Pulse current signal response characteristic Effects of impulse noise

( Input signal )

( Output signal )

( Output voltage )

Standards

UL94-V0.

EN60947-1:2004

IEC60950-1:2001

EN50178:1998

SJ 20790-2000
