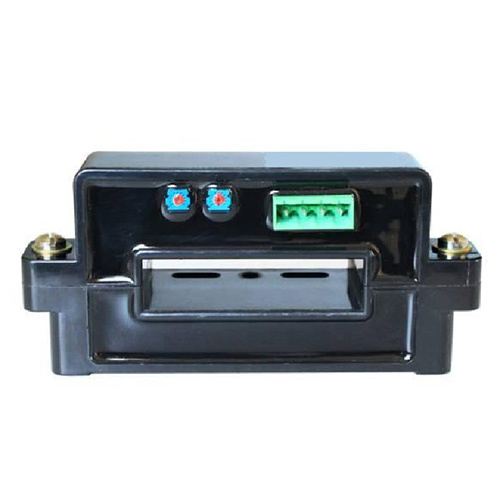

K5 series dismountable hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.
Type | K5-500A | K5-800A | K5-1000A | K5-1500A | K5-2000A | Unit |
Rated current(Ipn) | ±500 | ±800 | ±1000 | ±1500 | ±2000 | A |
Measure range(Ip) | 0—±1000 | 0—±1600 | 0—±2000 | 0—±3000 | 0—±3000 | A |
Rated output | @Ip=±Ipn ±4±1% | V | ||||
Supply voltage | ±12,±15 | V | ||||
Power Consumption | <25 | mA | ||||
Offset voltage | @Ip=0 ±20 | mV | ||||
Magnetic offset | @Ip=±Ipn-0 ±20 | mV | ||||
Offset drift | @ -40~+85℃ ≤±1 | mV/℃ | ||||
Output drift | @ -40~+85℃ ≤±1 | mV/℃ | ||||
Linearity | @Ip=0-±Ipn ≤1 | %FS | ||||
Response time | @50A/μS, 10%-90% ≤7 | μs | ||||
Galvanic isolation | @ 50HZ,AC,1min 6 | KV | ||||
Isolation resistance | @ DC 500V 1000 | MΩ |
Dimensions
Mechanical dimension(for reference only) | Note |
1. All dimensions are in mm. 2. General tolerance ±1mm. 3. Elucidation: 1:+12V 2:OV 3:V0UT 4:NC |
|
General date | Value | Unit |
Operating temperature(TA) | -40 to +85 | ℃ |
Storage temperature(TS) | -40 to +125 | ℃ |
Mass(approx) (M) | 400 | g |
Accuracy test
Effects of impulse noise | |
( Output voltage ) |
Standards
UL94-V0.
EN60947-1:2004
IEC60950-1:2001
EN50178:1998
SJ 20790-2000
