High Voltage Current Transformer

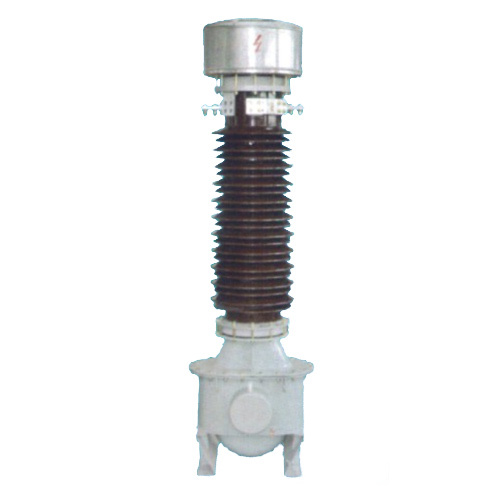

LB-110(W2) voltage transformer

Item No.: LB-110(W2)
It is applicable to neutral point effective earthing systems of rated frequency 50Hz and 110kV ,used for voltage ,electric energy measurment and relaying protection.
Description
Description
Introduce

JDC6-110 type voltage transformer has single-phase three-winding cascade insulating structure,it is applicable to neutral point effective earthing systems of rated frequency 50Hz and 110kV ,used for voltage ,electric energy measurment and relaying protection.

The product has good excitation characteristic and strong antiresonance capability ,has reliable running,is convenient for maintenance,the top is installed with stainless steel metal corrugated expander featured with full-sealed structure.

LB6-110 is suitable for 8 teas of altitude up to 1000m

LB6-110GY is suitable for areas of altitude up to 3000m.

Features
This type of transformer insulation from epoxy resin core with high-quailty magnetic materials.Primary and secondary windings and core are cast in epoxy resin.
With excellent insulation properties and moisture resistance,and easy to do surface cleaning.
Qualifying time at the top of casting body,the outlet side marked as P1,P2,a secondary winding(measurment level)outlet side of 1S1,1S2,the second secondary winding(P) outlet side 2S1,2S2,mutual inductance is less class levels.
The base has four mounting holes for installation.
Technical Parameter



Rated voltage Rated primary current Class combination Rated primary current Accuracy class Rated output Accuracy limit tactor
Full turn number Tap
110 2*50 P/P/0.5(0.2) , P/0.5/0.2 , P/P/0.2S , P/P/P/0.5(0.2) , P/P/0.5/0.2 , P/P/P/0.2S , P/P0.5/0.2S , P/P/P/P/0.5(0.2) , ,P/P/P/P/0.2S, P/P/P0.5/0.2S , P/P/P0.5/0.2S , P/P/P/P/P/0.5(0.2) , P/P/P/P0.5/0.2S , P/P/P/P/P/0.2S , P/P/P/P/0.5/0.2 5or1 5P,10P 50(30)   >15
2*75
2*100 0.5 50(30)
2*150
2*200 0.2 50(30)
2*300
2*400 0.2S 40(30)
2*500
2*600 (2*300) 5P,10P 50(30)   >15
2*750 (2*400) 0.5 50(30) 30(20)
2*800 (2*400) 0.2 50(30) 30(20)
2*1000 (2*500) 0.2S 40(30) 30(210)



Rated voltage Rated short-time thermal current dynamic stable current(kA) Rated insulation level Sprcific creepage distance oil weight Total weight
110 5.3-10.6 13-26 126/185/450 1.6 150(173) 650(850)
7.9-15.8 20-40
10.5-21 27-54
15.8-31.6 40-80
21-42 54-108 2
31.5-45 80-115
45 115
45 115 2.5
45 115 2.5
45 115
45 115
45 115



Specification



Number Name Outline
1 Oil level observation window
2 Metal Expander
3 Equal potential bondng wire
4 Primary outlet terminal
5 Connecting sheet
6 Procelain bushing
7 Oil tank
8 Nameplate
9 Hoisting hole
10 Secondary junction box
11 Earth stud
12 Oil drain valve

Dimensions



Primary connection terminal(P1\P2) material



Current ratio D B C d δ
2*50~2*400/5 60 65 30 14 10
2*50~2*750/5 80 85 40 16 12
2*1000 100 105 50 18 14



Type L L1 L2
High center of gravity
H Remark
LB6-110W 2425 1950 960 580 Four-winding
LB6-110W 2525 2025 960 680 Five/Six-winding
LB6-110WGYW2 2735 2260 1000 580 Four-winding plateau
LB6-110WGYW3 2835 2360 980 680 Five/Six-winding plateau



Accuracy test
