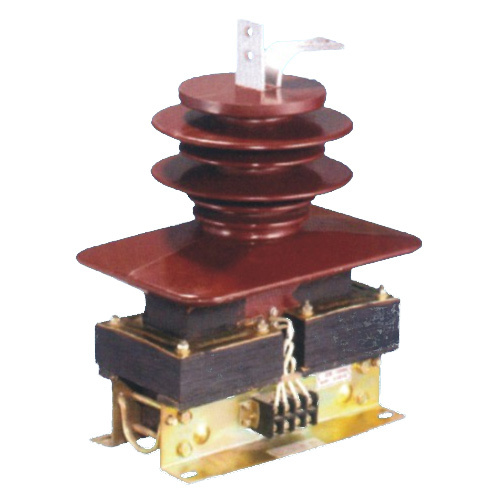

LCZ-35Q current transformer

Item No.: LCZ-35Q
LCZ-35Q type current transformers,epoxy cast indoor semi-closed structure for the rated voltage 35kV and below.The frequency of 50Hz AC line current,and energy measurment and relay protection.
Description
Description
Introduce

LCZ-35Q type current transformers,epoxy cast indoor semi-closed structure for the rated voltage 35kV and below.The frequency of 50Hz AC line current,and energy measurment and relay protection.

Features
This type of transformer core for laminated.
Primary winding and secondary windings with epoxy casting insulation,mounting bracket has the grounding bolt.
Stent at both ends of the rings for lifting.
Technical Parameter



TRANSDUCER
Rated insulation level 12/42/75kV
Load power factor 0.8(lag)
Rated secondary current 5A
Product standard GB1208
Safety factor
FS<10



Specification



Rated primary current Accuracy class and rated output 1 second heat current Dynamic current
0.2 0.5 10P10 10P25
20,30,40,50,75,100,150,200,300,400,600,800,1000 20 50 50 20 65Iln 162.5Iln
6008001000



Dimensions



LCZ-35Q



LCZ-35Q



Accuracy test
