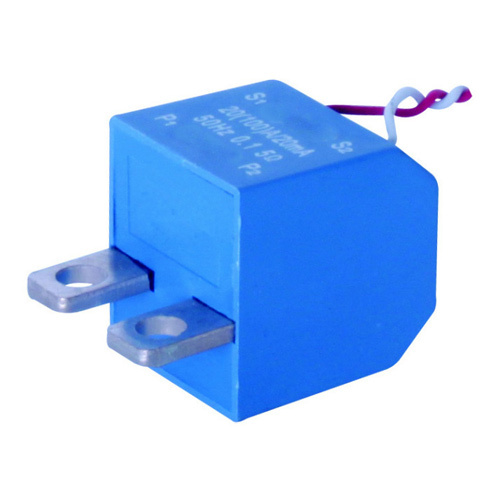

Mini Precision Current Transformer

Loading-Type Current transformer

Item No.: CT-10(1-12)
Suitable for a wide range of current(1.5A~120A),can be fixed at the terminal of the electricity meters with standard bolts, which makes it both firm and convenient.
Description
Description
Introduce
There are standard holes on the primary lead wire.Suitable for a wide range of current(1.5A~120A);
Therefore, can be fixed at the terminal of the electricity meters with standard bolts, which makes it both firm and convenient.
Features
The primary lead wire is highly customer-tailored with more than 100 specifications;
Encapsulated with epoxy resin to ensure strong insulation ability;
 Linear output current, high precision;
PBT anti-combustion pladtic casing.

Specification



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
CT-101 5(30)A/5mA 5A 30A 5mA 100mV 20Ω 0.1
10(60)A/10mA 10A 60A 10mA 100mV 10Ω 0.1
20(100)A/20mA 20A 100A 20mA 100mV 0.1
20(120)A/10mA 20A 120A 10mA 100mV 10Ω 0.1




CT-102 5(30)A/5mA 5A 30A 5mA 100mV 20Ω 0.1
10(60)A/10mA 10A 60A 10mA 100mV 10Ω 0.1
20(100)A/20mA 20A 100A 20mA 100mV 0.1
20(120)A/10mA 20A 120A 10mA 100mV 10Ω 0.1



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
CT-103 1.5(6)A/5mA 1.5A 6A 5mA 100mV 20Ω 0.1
1.5(7.5)A/5mA 1.5A 7.5A 5mA 100mV 20Ω 0.1
1.5(6)A/7.5mA 1.5A 6A 7.5mA 75mV 10Ω 0.1



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
CT-105 1.5(6)A/5mA 1.5A 6A 5mA 100mV 20Ω 0.1
1.5(7.5)A/5mA 1.5A 7.5A 5mA 100mV 20Ω 0.1
1.5(6)A/7.5mA 1.5A 6A 7.5mA 75mV 10Ω 0.1



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
CT-106 1.5(6)A/5mA 1.5A 6A 5mA 100mV 20Ω 0.1/0.05
1.5(9)A/5mA 1.5A 9A 5mA 100mV 20Ω 0.1/0.05
1.5(9)A/7.5mA 1.5A 9A 7.5mA 75mV 10Ω 0.1/0.05
0.3(1.2)A/1mA 0.3A 1.2A 1mA 40mV 40Ω 0.1



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
CT-107 5(30)A/5mA 5A 30A 5mA 100mV 20Ω 0.1
10(40)A/10mA 10A 40A 10mA 100mV 10Ω 0.1
10(40)A/5mA 10A 40A 5mA 100mV 20Ω 0.1



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
CT-108 5(30)A/5mA 5A 30A 5mA 100mV 20Ω 0.1
10(60)A/10mA 10A 60A 10mA 100mV 10Ω 0.1
10(60)A/5mA 10A 60A 5mA 100mV 20Ω 0.1
10(100)A/5mA 10A 100A 5mA 100mV 10Ω 0.1



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
CT-109 5(30)A/5mA 5A 30A 5mA 50mV 10Ω 0.2/0.1
5(30)A/2.5mA 5A 30A 2.5mA 50mV 20Ω 0.2/0.1
10(60)A/10mA 10A 60A 10mA 50mV 0.2/0.1
10(60)A/5mA 10A 60A 5mA 50mV 10Ω 0.2/0.1



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
CT-110 10(80)A/10mA 10A 80A 10mA 50mV 0.2/0.1
10(80)A/5mA 10A 80A 5mA 50mV 10Ω 0.2/0.1



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
CT-111 1.5(6)A/1.5mA 1.5A 6A 1.5mA 7.5mV 0.2
1.5(6)A/0.75mA 1.5A 6A 0.75mA 7.5mV 10Ω 0.2
5(30)A/5mA 5A 30A 5mA 100mV 20Ω 0.1/0.2
5(30)A/2.5mA 5A 30A 2.5mA 50mV 20Ω 0.1/0.2
10(40)A/10mA 10A 40A 10mA 100mV 10Ω 0.1/0.2
10(60)A/5mA 10A 60A 5mA 50mV 10Ω 0.1/0.2



Model Specifi cations Rated Pr.Current Max. Current Rated Sec. Current (mA) Rated sampling voltage Load Resistance(Ω) Accuracy Class
CT-112 10(60)A/10mA 10A 60A 10mA 100mV 10Ω 0.1
10(60)A/5mA 10A 60A 5mA 100mV 10Ω 0.1



Dimensions

CT-101 CT-102
CT-103 CT-105
CT-106 CT-107
CT-108 CT-109
CT-110 CT-111
CT-112


Accuracy test

24Hs online service
365Ds NON-Stop Production 20Ys Professional Manufacturers
Professional designer and manufacturer of current transformer,
cooperated with Siemens ,schneider Fuji electrical softbank LG samdsung.
Tel:13968747975
Add:(Zhejiang Lierde Relay Co., Ltd.) Xinguang Ind. Zone, Liushi Town, Wenzhou, Zhejiang, China
