High Voltage Current Transformer

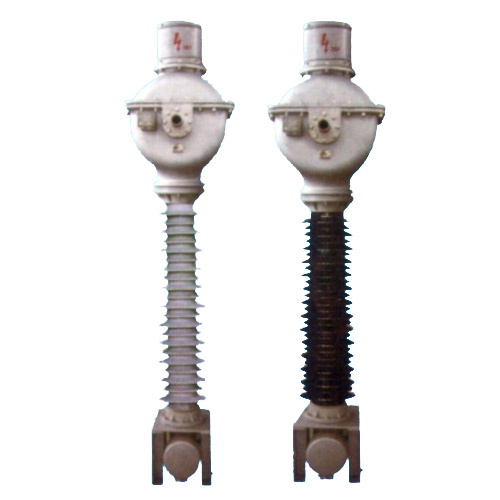

LVB-110W2 current transformer

Item No.: LVB-110W2
LVB-110W2 inverted current transformer for 50Hz ,110kV power systems for current and energy measurment ,and protective.
Description
Description
Introduce

The product are mainly from the oil tank ,high strength porcelain(or silicone rubber casing)base,corrugated expander,primary winding,secondary winding and other parts.

Features
Modern and compact design.
Small size,light weight,good insulation properties,high mechanical strength.
Uniform electric field distribution the dielectric loss factor .The partial discharge is low.
Inverted structure,the oil-paper insulation .Anti-current capability of dynamic thermal stability.Safe operation .Easy to maintain.

Dimensions



LVB-110W2
Rated voltage of system 110
Rated primary current 20*300-2*1500
Rated secondary current 5(1)
Class combination 5P/5P/5P/0.2S,5P/5P/5P/5P/0.5/0.2(0.2S)
Measure the level rated secondary load and instrument security factor 30-50VA FS<5 OR FS<10
Measure the level rated secondary load and the accuracy limit factor 30-60FVA 5P15-5P30
Short-time thermal current 50
Rated dynamic current 125
Creepage diatance >3150
Rated insulation level 126/200/480
Partial discharge level <5
Oil weight Total weight 60/340



Dimensions



LVB-110W2

Accuracy test
