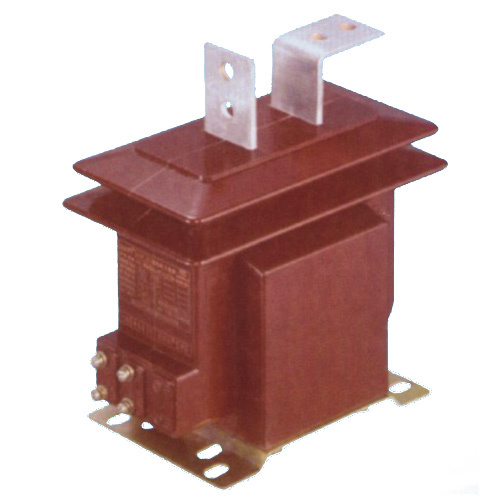

This product is the improvement the original old product LZJ of (C,D)-10 on the basis of the closure of the entire product design,to overcome the surface to climb away from the S-class small can not do the shortcoming of old product ,this product can be completely replaced LZJ(C and D)-Model 10.
The products are widely used HXGN1-10 box -type AC Metal-enclosed ring net cabinet.HK-10D ring network switchgear HGKC-10 ring network off the cabinet.
TRANSDUCER | |
Rated insulation level | 12/42/75kV |
Load power factor | 0.8(lag) |
Rated primary current |
5-1000A |
Rated secondary current | 5A/1A |
Product standard | GB1208 |
Safety factor |
FS<10 |
Specification
Rated primary current | Accuracy class | Rated secondary output | 1 second heat current | |||||
0.2S | 0.2 | 0.5S | 0.5 | 10P10 | 10P15 | |||
5-300 | 0.2S/10P | 10 | 10 | 10 | 10 | 15 | 15 | 100Iln |
400 | 0.2/10P | 45 | ||||||
500 | 0.5S/10P | 56 | ||||||
600 | 0.5/10P | 15 | ||||||
800 | 0.2/0.5 | 20 | 20 | 80 | ||||
1000 | 0.2/0.2 | 25 |
Dimensions
Outline dimension |
|
![]() |
A side mounting hole | 5-400A B side | 5-400A C side |
![]() |
![]() |
![]() |
500-800A B side | 500-800A C side | |
![]() |
![]() |
Accuracy test
