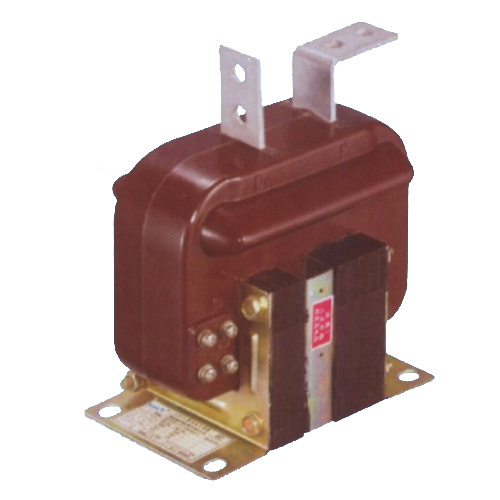

LZJ(C,D)-10 current transformer
LZJ(C,D)-10 current transformer LZJ(C,D)-10 current transformer LZJ(C,D)-10 current transformer
  • LZJ(C,D)-10 current transformer

LZJ(C,D)-10 current transformer

Item No.: LZJ(C,D)-10
LZC(C,D)-10 casting insulation pillar type current transformer for rated frequency of 50Hz.rated voltage 10kV power system current,energy measurment and relay protection.
Add to Inquiry
Description
Description
Introduce

LZC(C,D)-10 casting insulation pillar type current transformer for rated frequency of 50Hz.rated voltage 10kV power system current,energy measurment and relay protection.

Features
This type of transformer primary winding and secondary winding with epoxy resin casting.
Core body insulation pouring folder pack folder on the nameplate.
The clamp foot four mounting holes on.
Technical Parameter



TRANSDUCER
Rated insulation level 12/42/75kV
Load power factor 0.8(lag)
Rated primary current
 5-1000A
Rated secondary current 5A/1A
Product standard GB1208
Safety factor
 FS<10



Specification



Type Rated voltage Rated primary current Rated secondary current Accuracy class Rated secondary load 10P Accurary class limit-value coeffcient 1 second heat current(Ka)(rms) Dynamic current
0.5class 10Pclass
LZJ-10 10 5-400 5 0.2/10P , 0.5/10P 10 15 10 60Iln 150Iln
600 50Iln 120Iln
800 50Iln 100Iln
1000 45Iln 90Iln
LZJC-10/LZJD-10 5-400 15 90Iln 160Iln
600 60Iln 150Iln
800 50Iln 120Iln
1000 45Iln 90Iln



Dimensions



5-400A 600-1000A

Accuracy test
